Comparative analysis of underground and ground-level tilt and acceleration
-

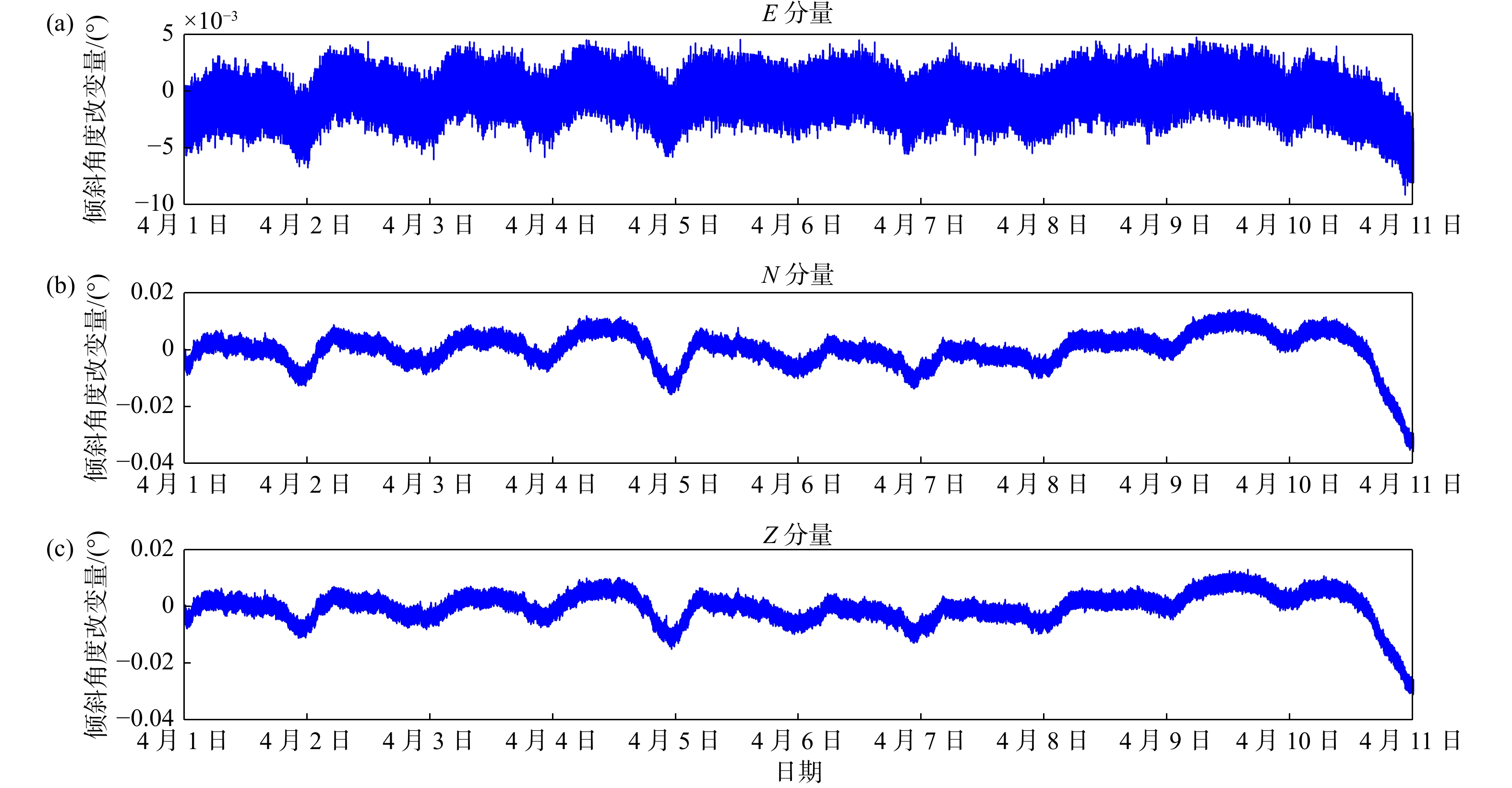

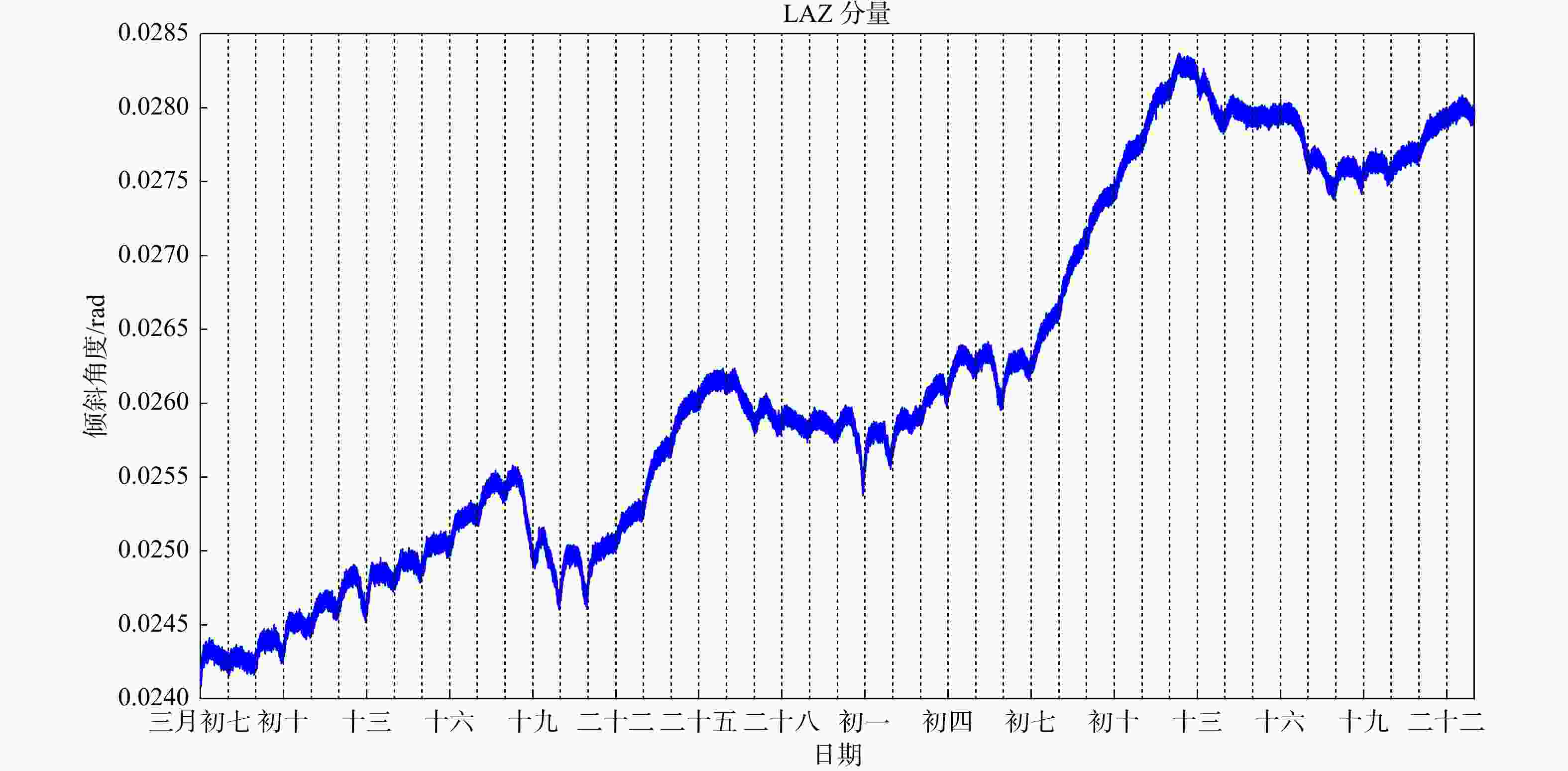

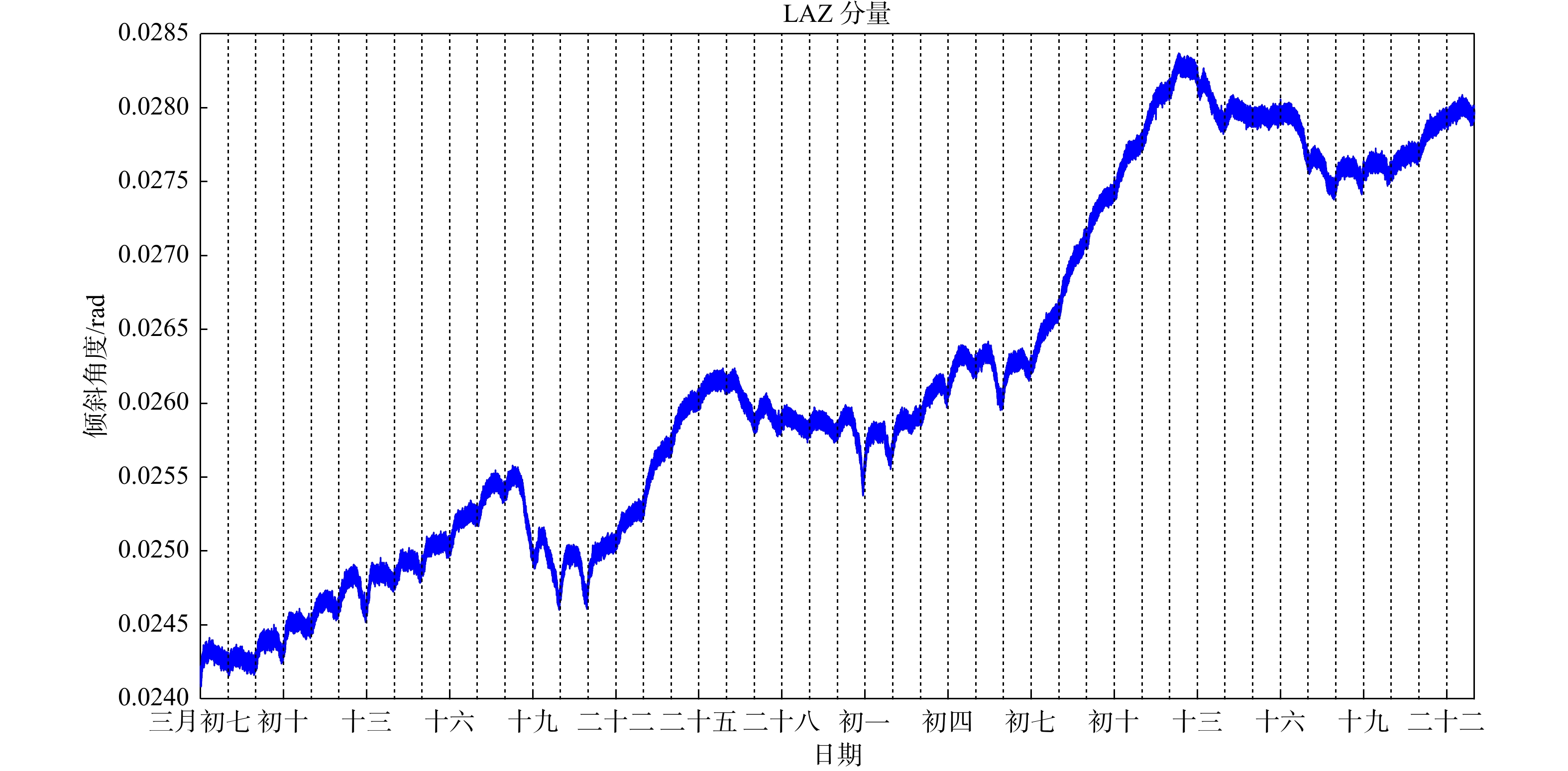

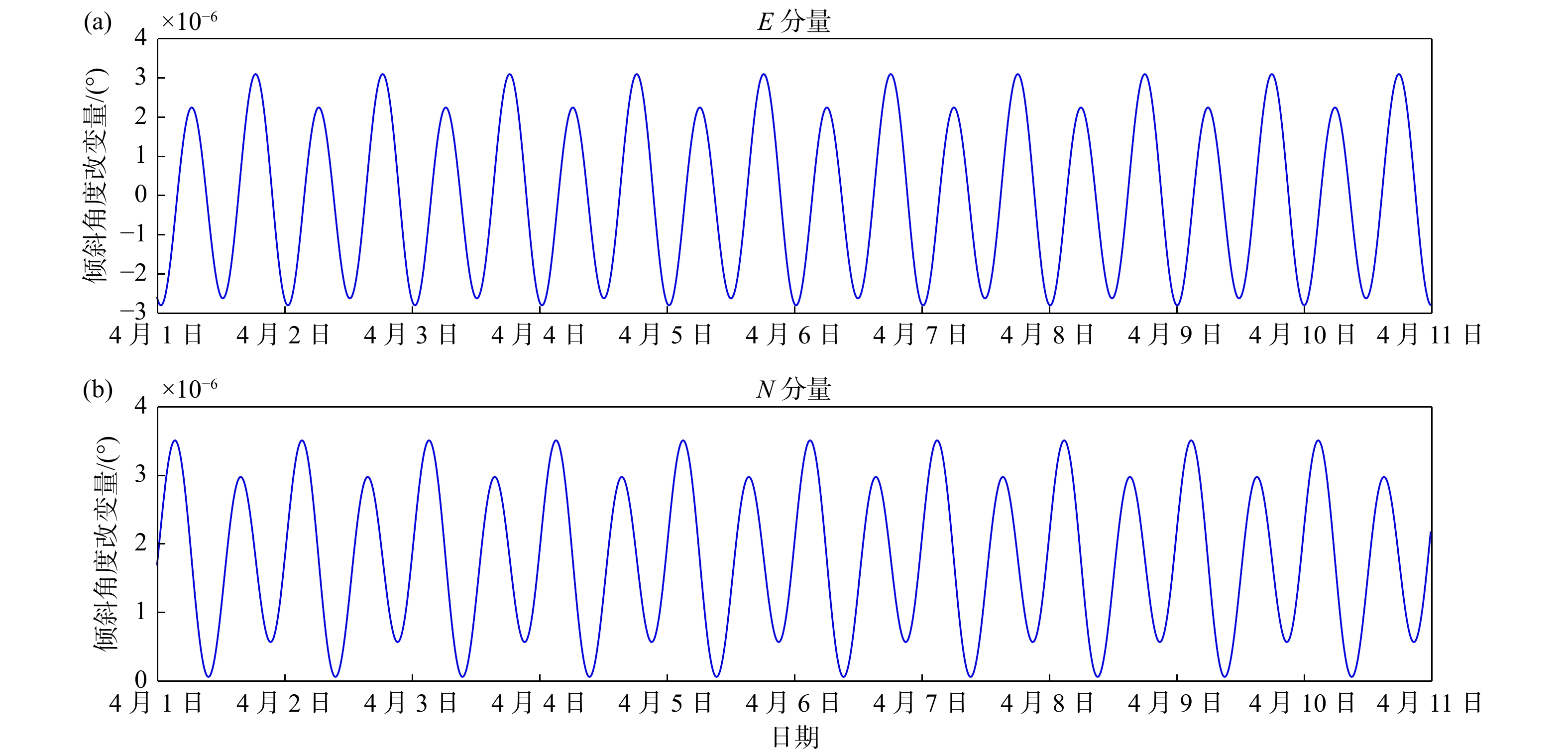

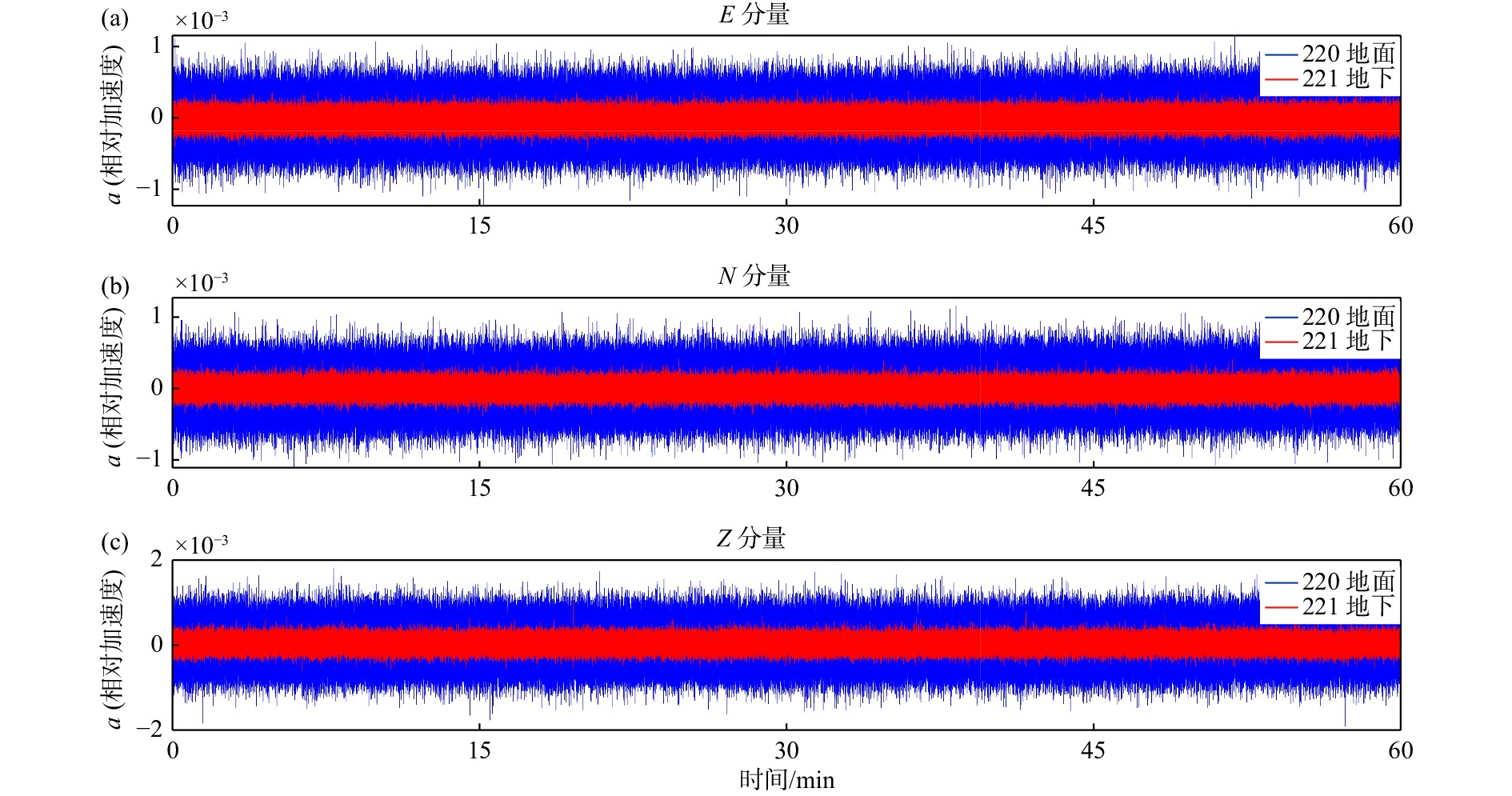

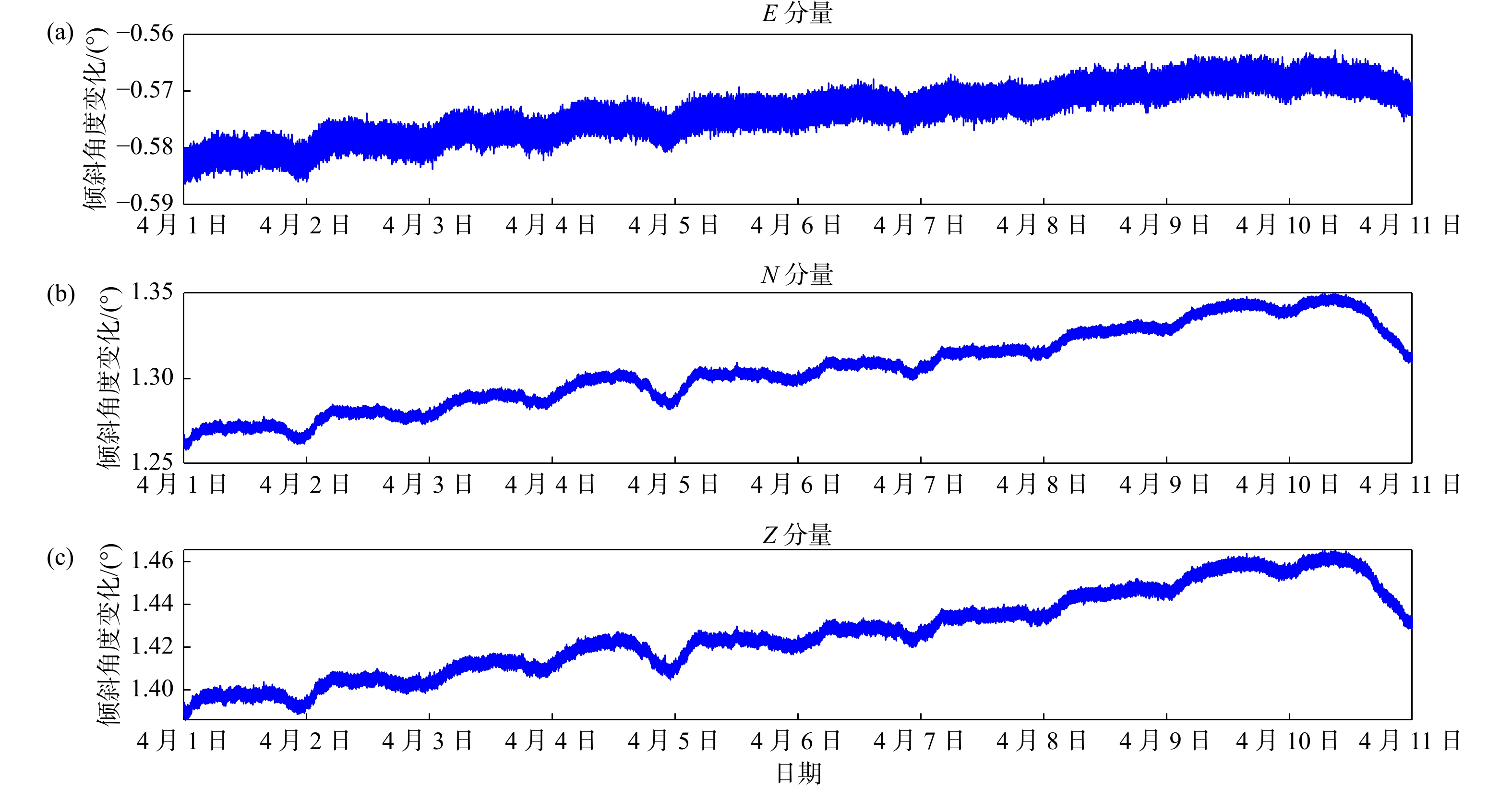

摘要: R-2型旋转地震仪可同时记录旋转三分量、MEMS加速度以及倾斜角度. 利用在淮南深地实验室地面和深部地下实施的两期连续观测数据,本文分析了地面和地下加速度与倾斜观测中背景噪声的差异. 结果表明:相比于地面,深地环境背景噪声干扰更弱,频谱上二者差异可达10 dB,说明深地环境具有低振动噪声的优势. 利用倾斜数据对MEMS加速度进行倾斜校正,校正前后的对比结果显示倾斜对加速度测量具有不可忽略的影响. 地倾斜信号的时频分析结果表明,相对于地表环境,深地环境有利于进行长周期微弱地球形变信号的检测. 本文还分析了固体潮信号观测的精度要求与现有仪器的不足,证明了在深地环境下进行高精度观测的必要性.Abstract: The R-2 rotary seismograph can record rotating three components, MEMS acceleration, and tilt angle. In this study, the difference between ground acceleration and tilted background noise were analyzed using two phases of continuous observation data implemented in the ground and deep underground of the Huainan Deep Earth Laboratory. It was found that the deep earth environmental background interference was weaker, with background noise differences on the spectrum of up to 10 dB, showing that the Deep Earth Laboratory has superior conditions regarding low vibration and noise. The contrast before and after the skew correction of the MEMS acceleration using the tilt data revealed that the tilt had a non-negligible influence. The time-frequency analysis showed that the deep earth environment was favorable relative to the surface environment. The precision requirements of solid tide signal observations and shortcomings of existing instruments were also analyzed, proving the necessity of high precision observations in the deep earth environment.
-
Key words:
- rotate the seismograph /
- deep observation /
- tilt /
- acceleration
-

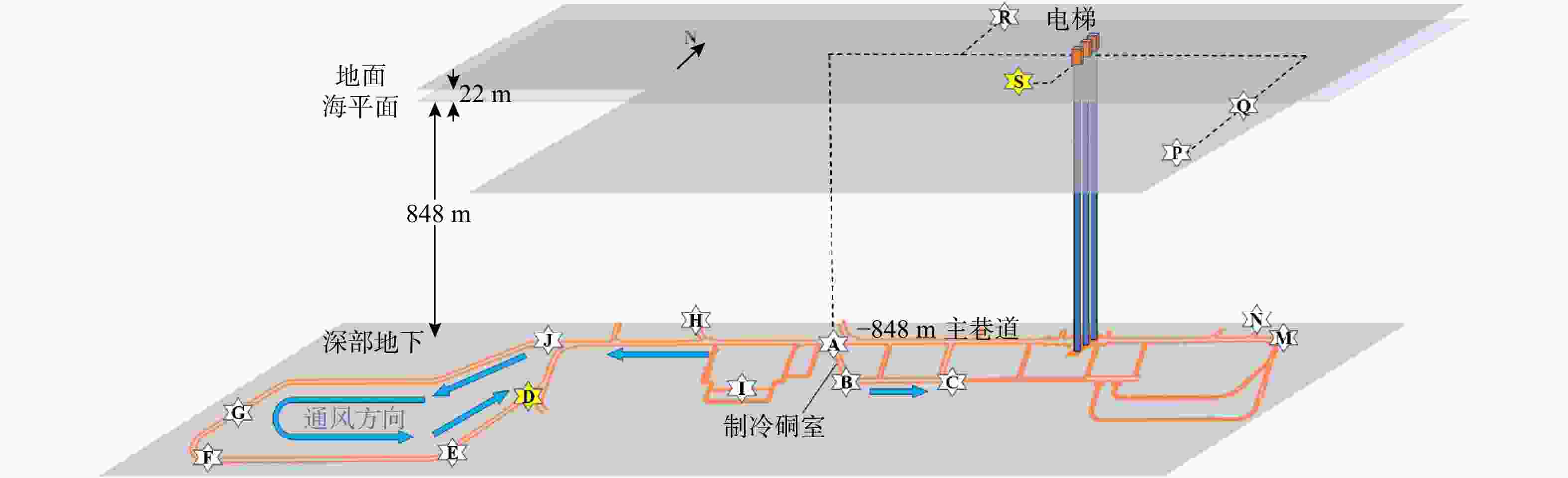

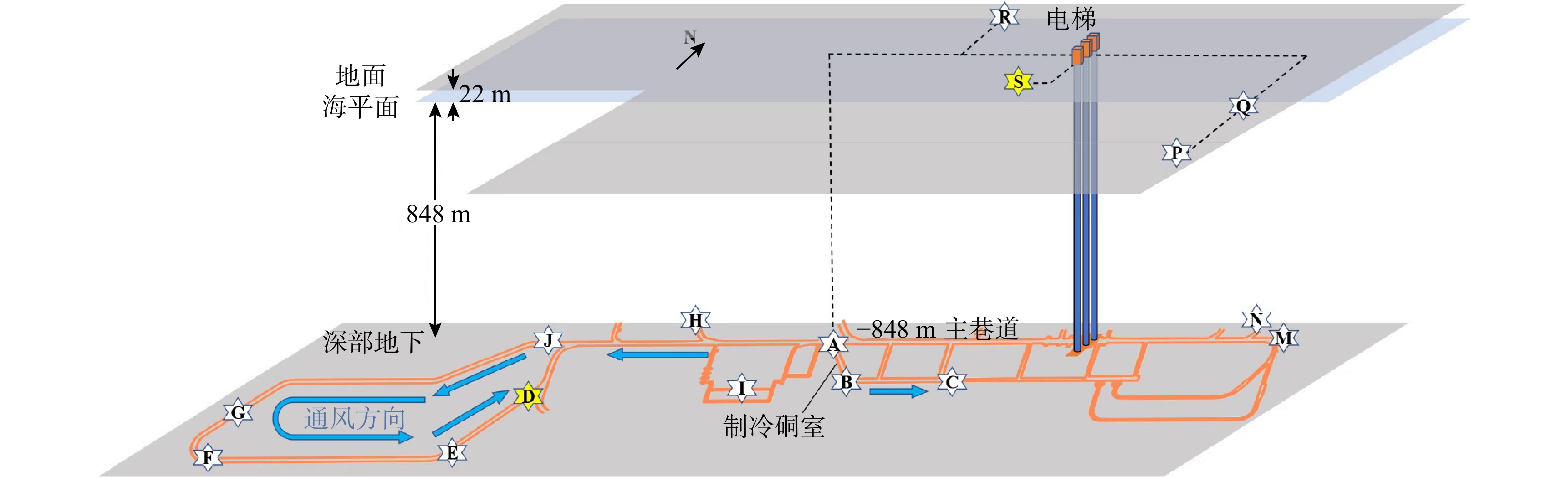

图 1 淮南深地实验室R-2地震仪观测点位分布(修改自陈畅等,2022)
Figure 1. Distribution of the R-2 seismometer observation sites in the Huainan Deep Earth Laboratory (modified from Chen et al., 2022)

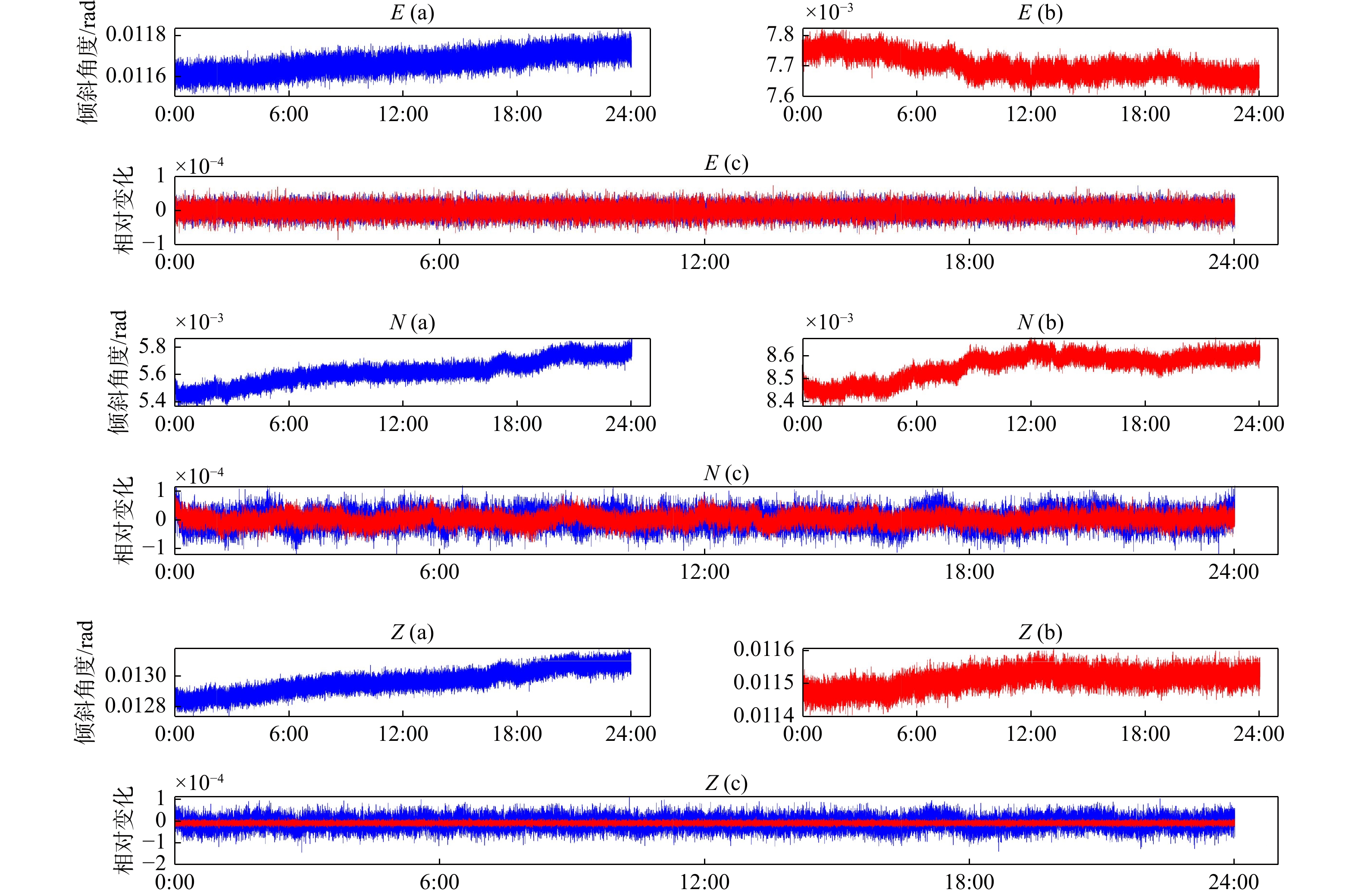

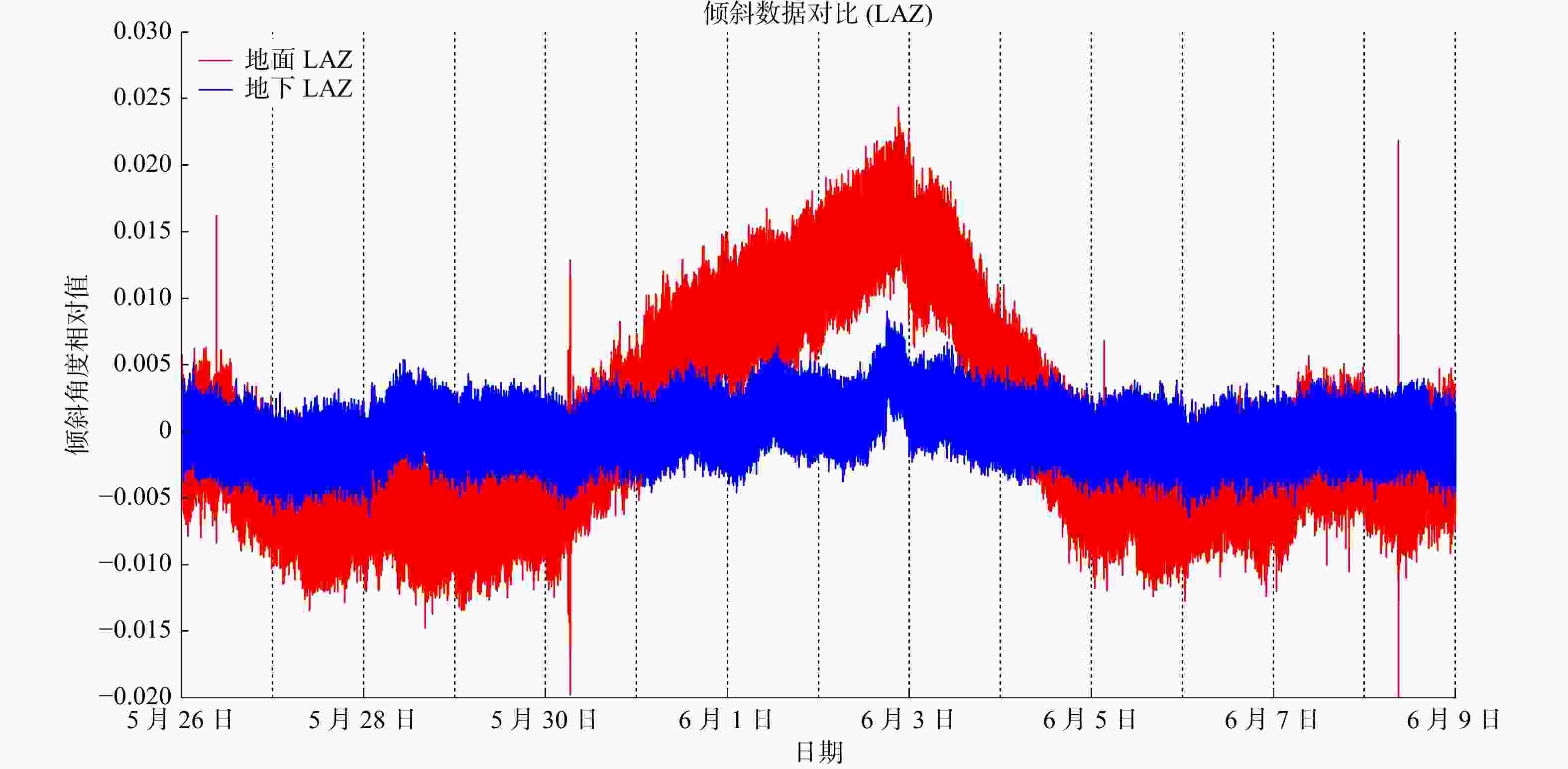

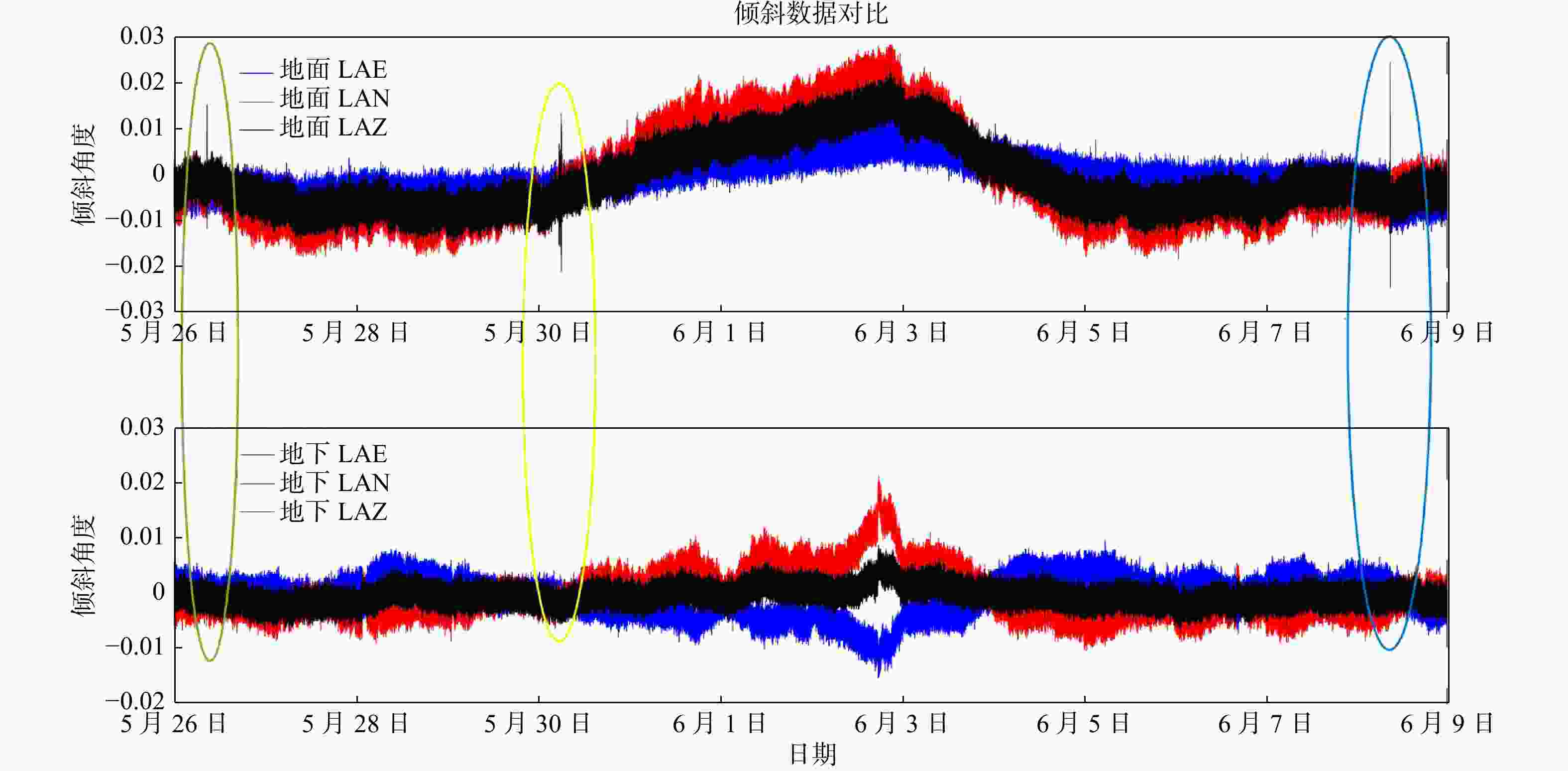

图 3 倾斜数据波形图地面地下对比(E方向、N方向、Z方向). (a)为地面观测的原始倾斜数据;(b)为地下观测的原始倾斜数据;(c)为去均值后的结果. 蓝色为地面的倾斜数据,红色为地下的倾斜数据
Figure 3. Comparison of tilt data wave graph between the ground and the underground (E direction, N direction, Z direction). (a) Shows the original tilt data observed on the gound; (b) Shows the original tilt data observed on the undergound; (c) Shows the results after removing the mean. Blue is the tilt data of the ground and red is the tilt data of the ground

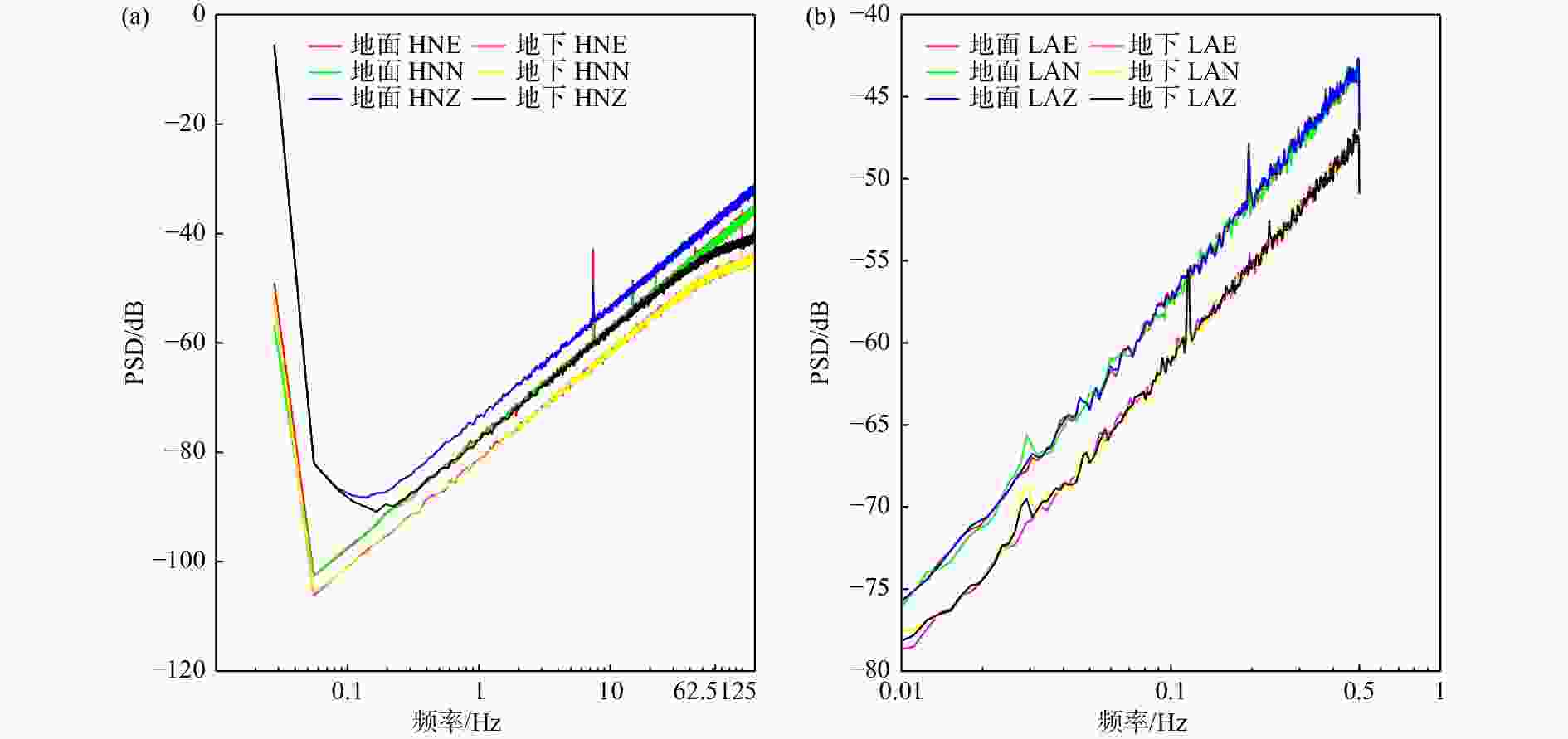

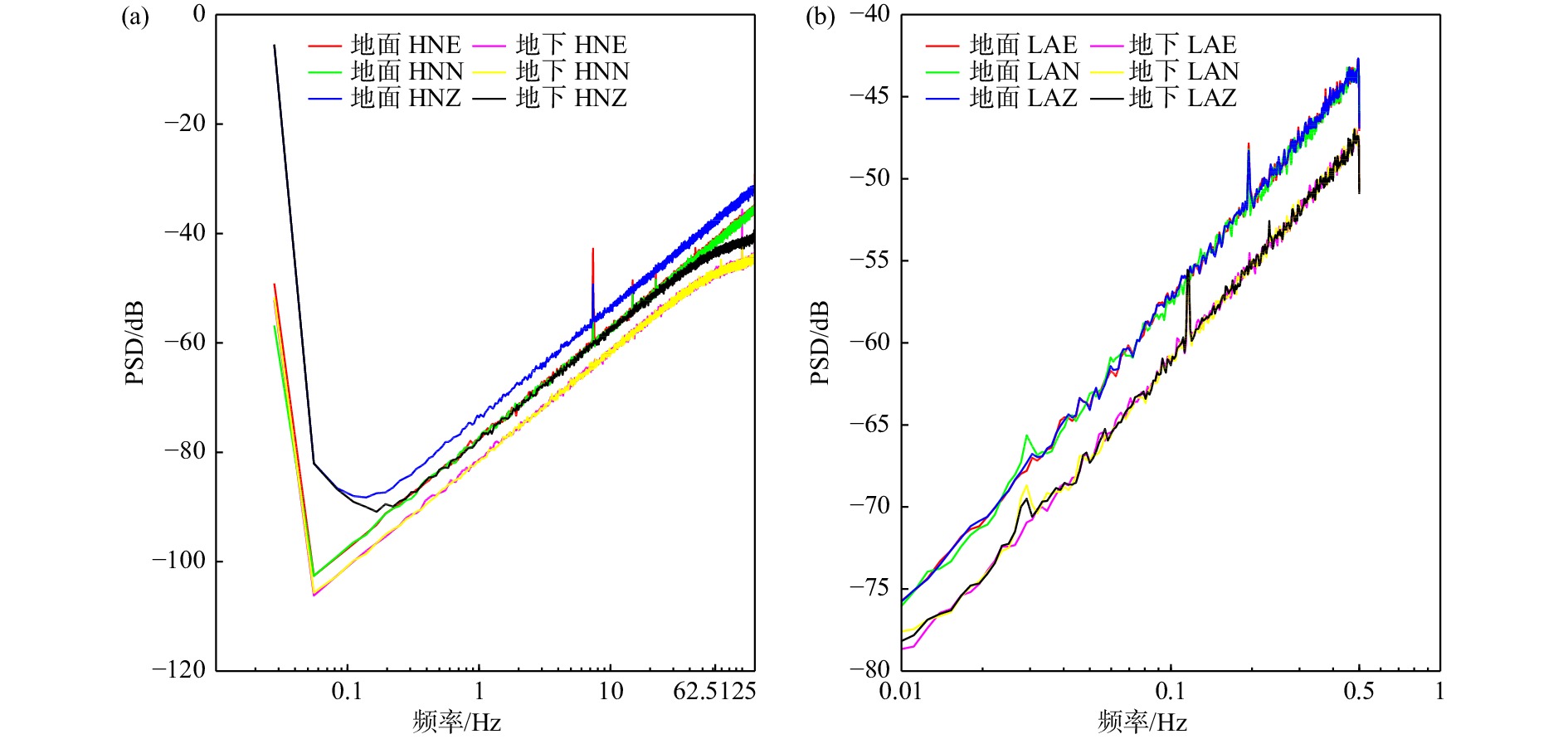

图 4 MEMS加速度和倾斜数据功率谱对比. (a)为MEMS;(b)为倾斜;地面数据:红色为E方向,绿色为N方向,蓝色为Z方向;地下数据:粉色为E方向,黄色为N方向,黑色为Z方向
Figure 4. Power spectrum comparison of the MEMS acceleration and tilt data. (a) MEMS; (b) Tilt. Ground data: red is the E direction, green is the N direction, blue is the Z direction; Ground data: pink is the E direction, yellow is the N direction, black is the Z direction
表 1 R-2地震仪主要性能参数(旋转)
Table 1. Main performance parameters of the R-2 seismograph (rotation)
性能参数 R-2 输出数据通道 X、Y、Z rotational 分辨率 6×10−8 rad/s at 1 Hz 自噪声功率谱 −125 dB (rel. 1 rad/s2/√Hz) 频率范围 0.033~50 Hz 温度范围 −15℃~55 ℃ 电压供应范围 10~18 V 表 2 R-2地震仪MEMS加速度和倾斜主要性能参数
Table 2. Main performance parameters of the MEMS acceleration and tilt of the R-2 seismographs
性能参数 MEMS +TILT 输出数据通道 MEMS/TILT E N Z 可以选择的采样频率 125, 250, 500, 1000 Hz/1, 10, 20, 100 s 输入电压 ± 20 V 功率消耗 < 2 W (rec, 6 ch, Еtherneton) 存储容量 32 GB FAT32/EXT4 存储格式 miniSEED 温度范围 −40°C~85°C 表 3 有效观测时段
Table 3. Statistics of the effective observation duration
位置 仪器类型 第一期观测时间范围(UTC+8) 第二期观测时间范围(UTC+8) 地下 R-2
(221)倾斜仪 2020-03-30 8:00—2021-05-15 10:00 2021-05-25 8:00—2021-06-09 8:00 MEMS加速器 2020-03-30 16:00—17:00 2021-05-25 8:00—2021-06-09 8:00 旋转地震计 2020-03-30 16:00—17:00 2021-05-25 8:00—2021-06-09 8:00 地面 R-2
(220)倾斜仪 2020-01-20 12:00—2020-01-22 13:00 2021-05-26 8:00—2021-06-11 8:00 MEMS加速器 2020-01-20 12:00—2020-01-22 13:00 2021-05-26 8:00—2021-06-11 8:00 旋转地震计 2020-01-20 12:00—2020-01-22 13:00 2021-05-26 8:00—2021-06-11 8:00 表 4 MEMS加速度数据倾斜校正前后对比

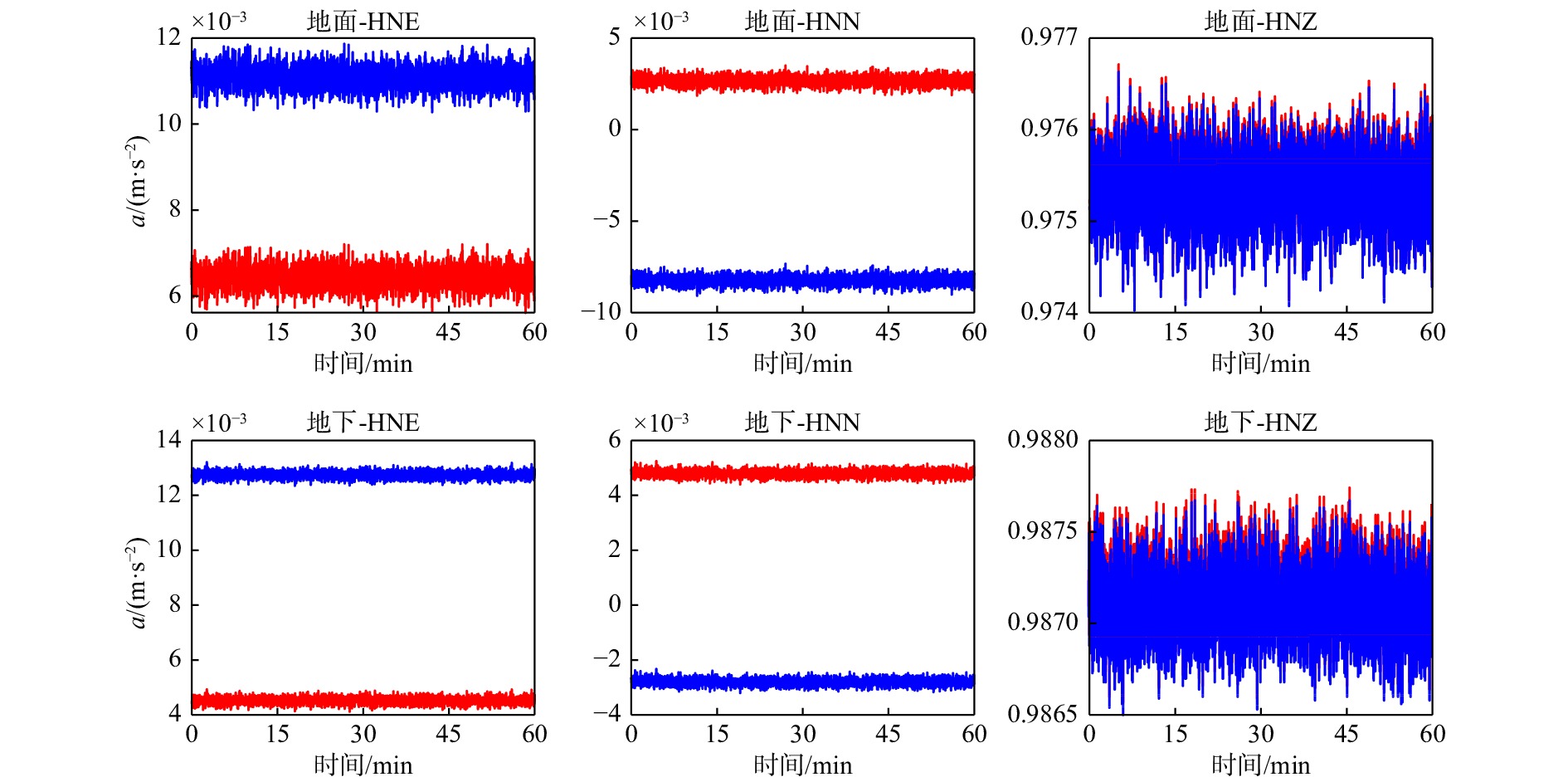

Table 4. Comparison of the MEMS acceleration data
仪器型号 方向 状态 平均值/g 差值/g 改变幅度 221地下 E 校正前 −0.005863 校正后 0.015382 0.021245 −362.36% N 校正前 0.012756 校正后 0.023152 0.023152 181.50% Z 校正前 0.98641 校正后 0.98612 −0.00029 −0.03% 220地面 E 校正前 −0.07098 校正后 −0.040716 0.030264 −42.64% N 校正前 0.029821 校正后 0.14623 0.116409 390.36% Z 校正前 0.97245 校正后 0.96361 −0.00884 −0.91% -
