光纤振动传感之二:基于散射或透射光的本征传感及其地震学应用

王伟君 陈凌 王一博 彭菲

引用本文: 王伟君,陈凌,王一博,彭菲. 2022. 光纤振动传感之二:基于散射或透射光的本征传感及其地震学应用. 地球与行星物理论评,53(2):119-137
Wang W J, Chen L, Wang Y B, Peng F. 2022. Fiber-optic vibration sensing ‒ II: Intrinsic sensing with scattered or transmitted light and their seismological applications. Reviews of Geophysics and Planetary Physics, 53(2): 119-137

光纤振动传感之二:基于散射或透射光的本征传感及其地震学应用

doi: 10.19975/j.dqyxx.2021-048
基金项目: 中国地震局地震预测研究所基本科研业务专项资助项目(2020IEF0602);国家自然科学基金资助项目(41674058,41790463)
详细信息
    通讯作者:

    王伟君(1972-),男,研究员,主要从事地震学研究. E-mail:wjwang@ief.ac.cn

  • 中图分类号: P315

Fiber-optic vibration sensing ‒ II: Intrinsic sensing with scattered or transmitted light and their seismological applications

Funds: Supported by the Institute of Earthquake Forecasting, China Earthquake Administration (Grant No. 2020IEF0602) and the National Natural Science Foundation of China (Grant Nos. 41674058, 41790463)
  • 摘要: 本征光纤振动传感通过在光纤一端重复发射探测激光,在光纤同端或另外一端接收散射光或透射光并解调它们的变化,测量光纤上的动态应变(即振动). 本征传感以光纤为传感器,具有结构简单,布设灵活,运维方便的优点,能应用于流体、高温、高压或强电磁干扰等恶劣环境,可以大幅度延伸可监测的区域,并实现相对廉价的长期连续监测. 此外,光纤传感还可以利用全球城市内、城际间和跨洋等已有光缆中的冗余光纤资源,快速构建振动监测网络,改善振动监测能力. 目前基于散射光的振动传感,单台仪器可以实现沿光纤米级间隔、近百千米的密集分布式监测;而基于透射光的传感,尚缺乏分布式观测能力,但可检测上万千米长光纤上的强烈振动. 本文介绍这两类本征光纤振动传感相关的基本原理、应用实例和发展前景.

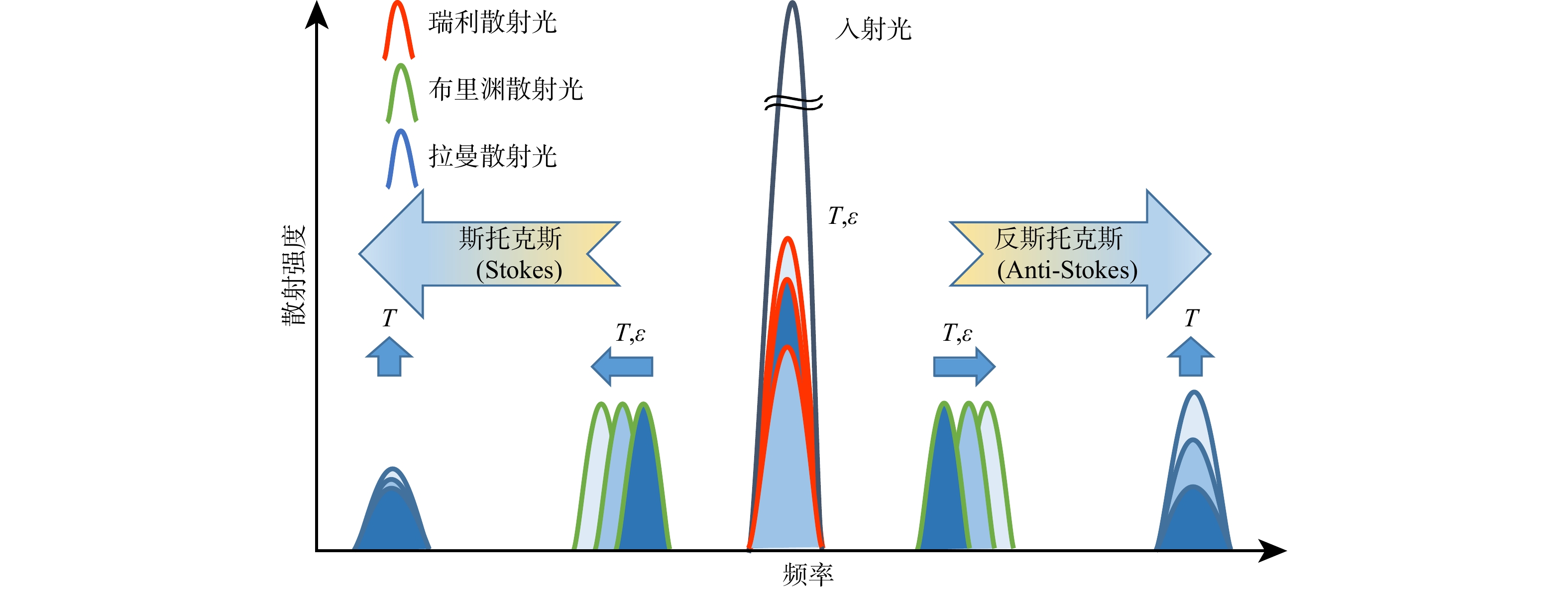

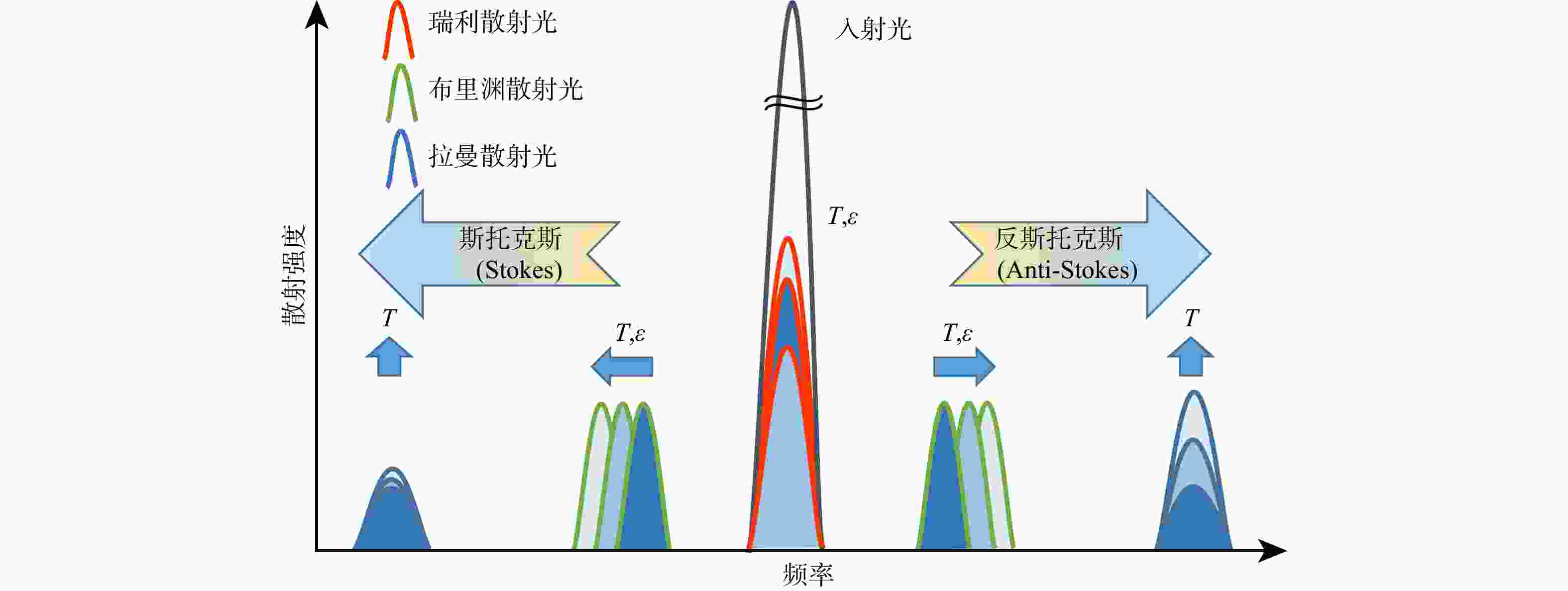

  • 图  1  光纤几种散射光的频率和强度分布示意图. T:温度;ε:应变

    Figure  1.  The diagram of frequency and intensity distributions of scattered lights in optical fiber. T: temperature; ε: strain

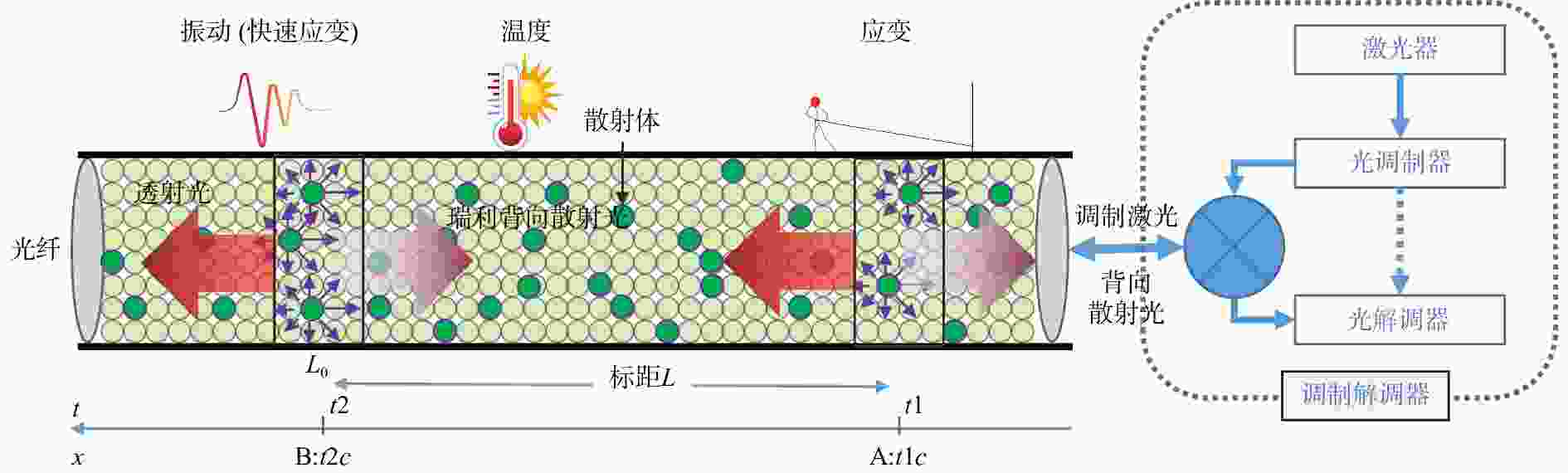

    图  2  分布式光纤振动传感(DAS)系统示意图. 背向瑞利散射光能够测量光纤应变和温度的变化,振动是通过高频测量应变(或应变率)而获得. L0表示DAS的空间分辨率,是光脉冲在光纤内的光柱长度. 散射在光柱内是随机分布的;c是光纤光速,A和B为t1和t2两个时刻光柱所在位置;深红色和浅红色箭头分别指示透射光和背向散射光的传播方向

    Figure  2.  The diagram of the fiber-optic distributed acoustic sensing (DAS) system. The Rayleigh back-scattering lights can sense the changes of strain and temperature in fiber, and the vibration is obtained from high frequent strain (or strain rate) measurements. L0 is spatial resoltuion of DAS, which is the length of light plus in the fiber. The scattering is random distributed. c is light speed in fiber-optic; A and B are locations of fiber sections for light in the time of t1 and t2; the dark and light red arrows indicate the direction of transmitted light and back-scattering light respectively

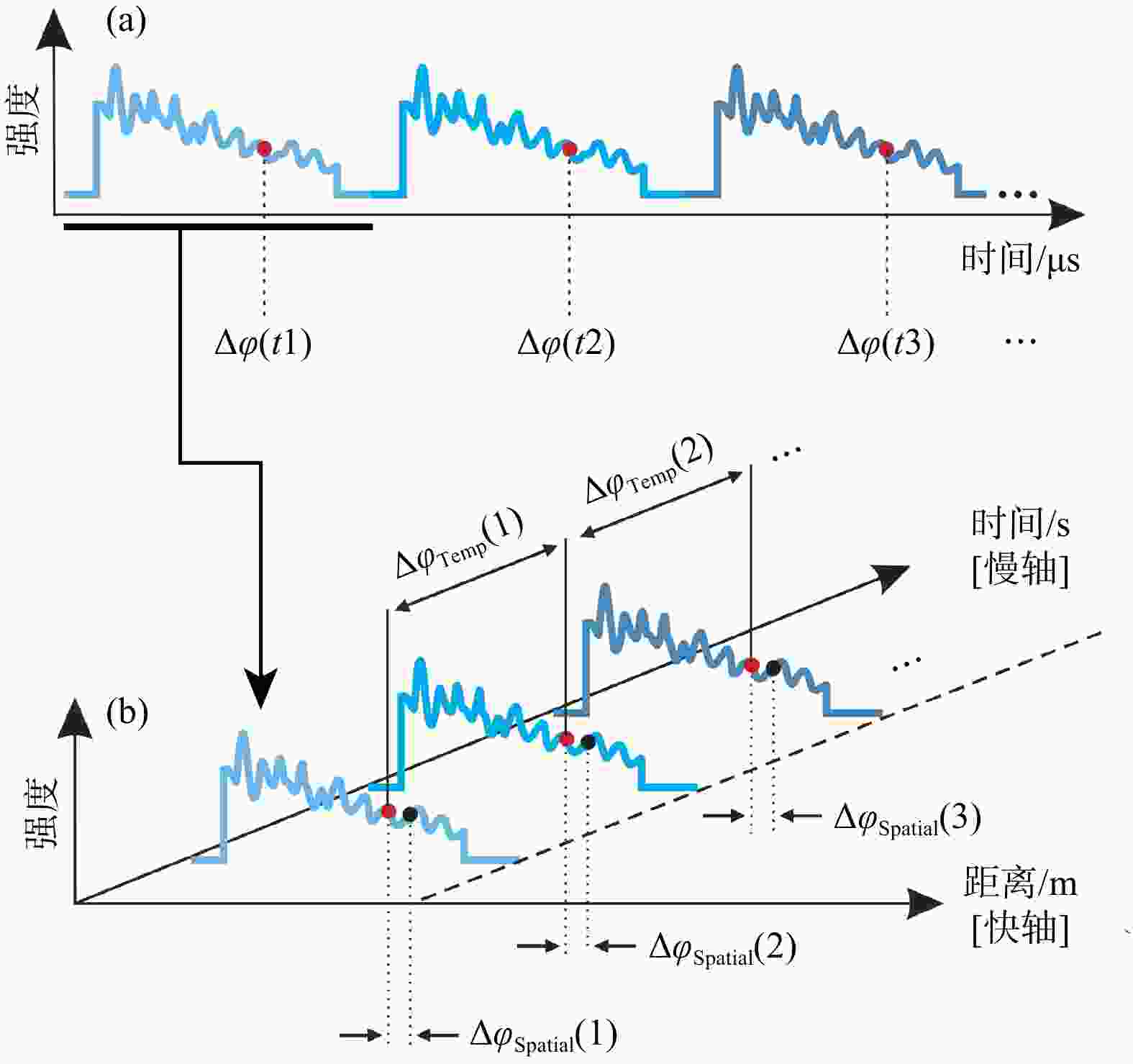

    图  3  (a)背向瑞利散射光信号的振幅—时间序列. (b)将时间序列按快慢轴重排后的二维时间序列. 红点和黑点分别对应光纤上的两个采样区段(修改自Masoudi and Newson, 2016

    Figure  3.  (a) Amplitude-time series of the RBSs. (b) Rearranged the time series into 2D time series according to the fast and slow axis. The red dot and the black dot correspond to the two sampling sections on the fiber (modified from Masoudi and Newson, 2016)

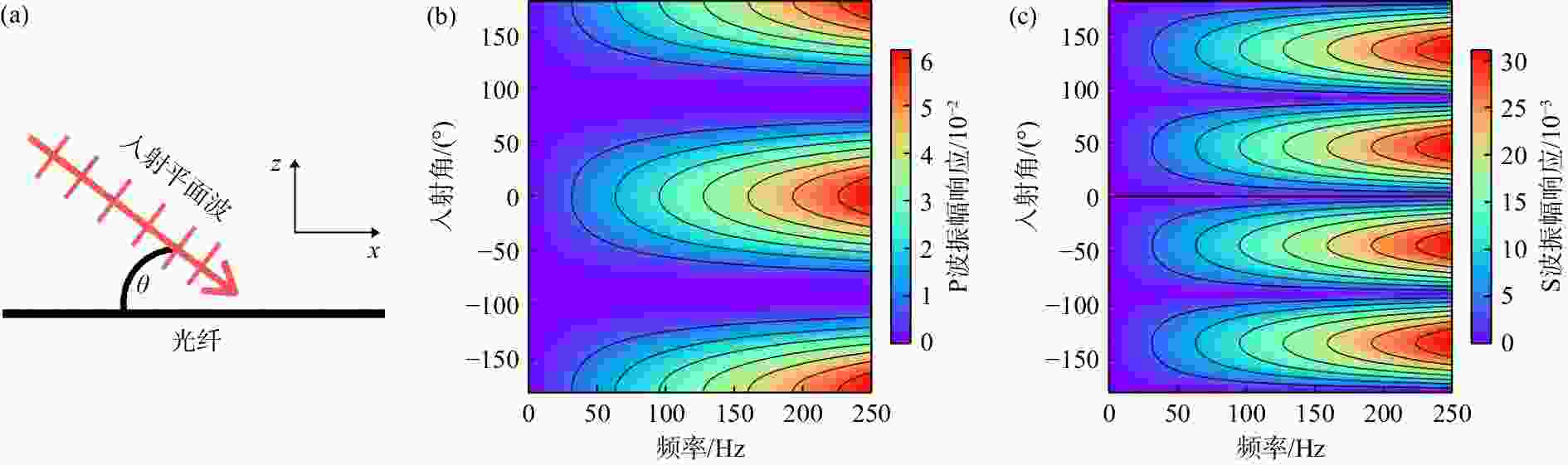

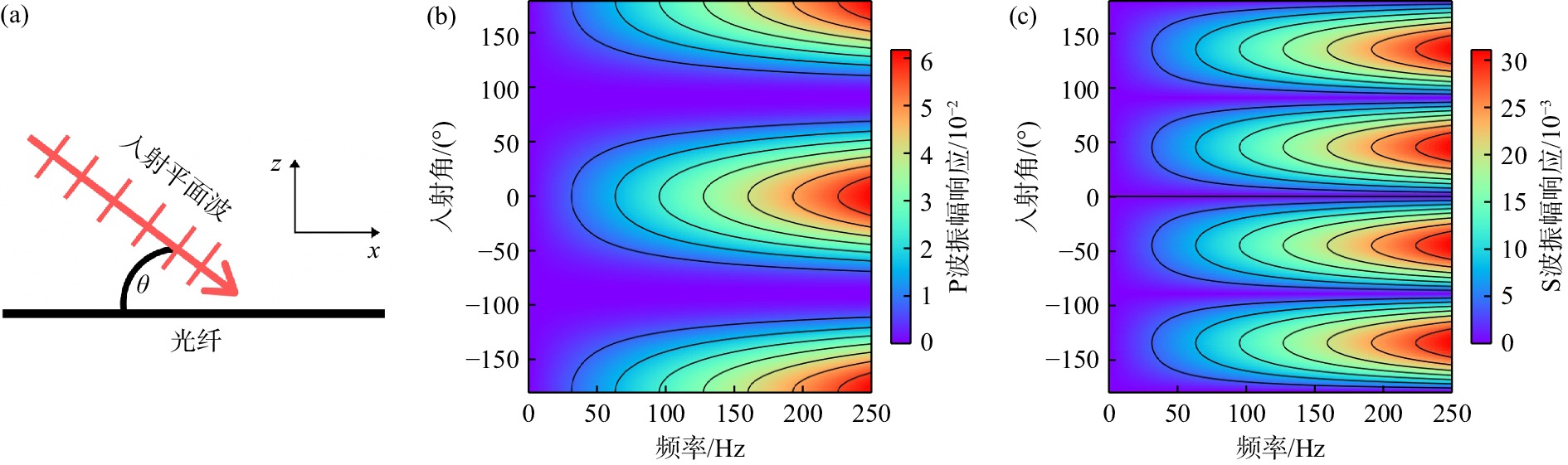

    图  4  P和S波DAS响应函数. (a)平面入射波以一定角度交汇于光纤;(b)P波和(c)S波的DAS响应函数. 其中标距L=10 m,VP=2 500 m/s,VS=1 560 m/s(修改自https://motionsignaltechnologies.com/what-is-das-and-what-is-it-measuring/)

    Figure  4.  DAS response functions for P and S waves. (a) Waves incident into optical fiber with angle; and the DAS responses for P wave (b) and S wave (c). Where gauge length L=10 m, VP=2 500 m/s, VP =1 560 m/s (modified from https://motionsignaltechnologies.com/what-is-das-and-what-is-it-measuring/)

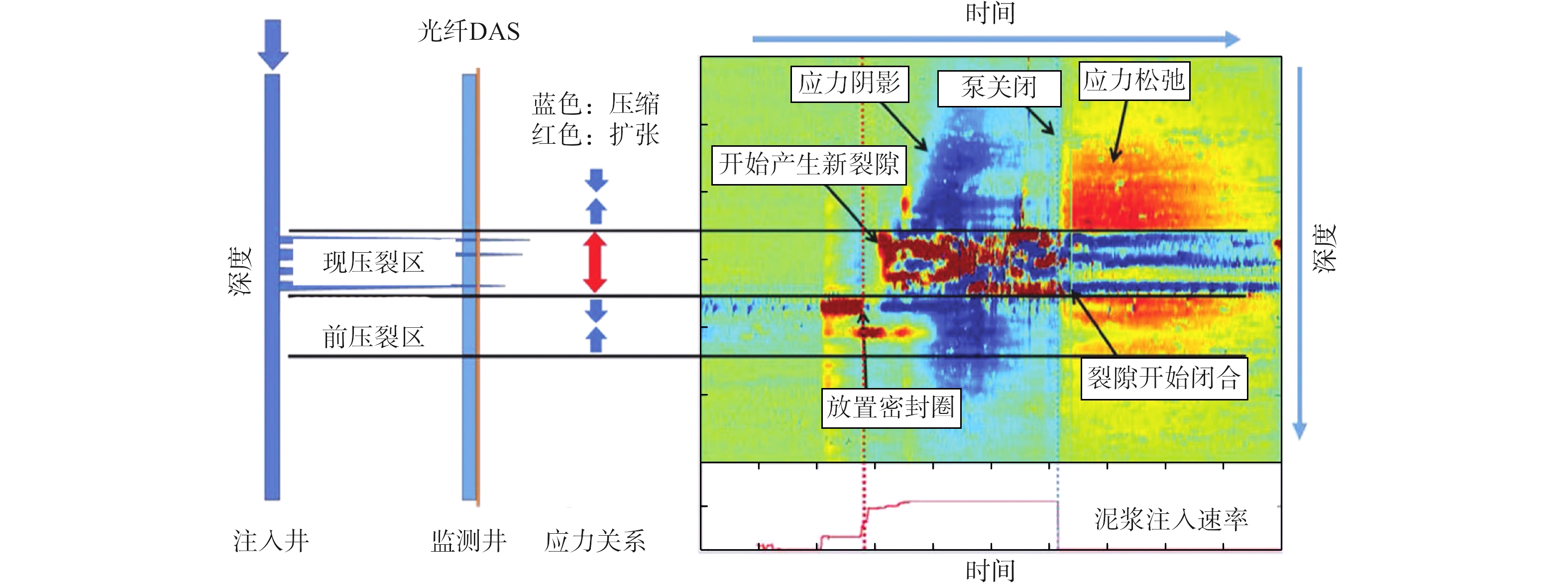

    图  5  水压致裂操作过程中监测井DAS记录到的低频响应(修改自Jin and Roy, 2017

    Figure  5.  Low-frequency DAS response at an offset well during hydraulic-fracturing operation (modified from Jin and Roy, 2017)

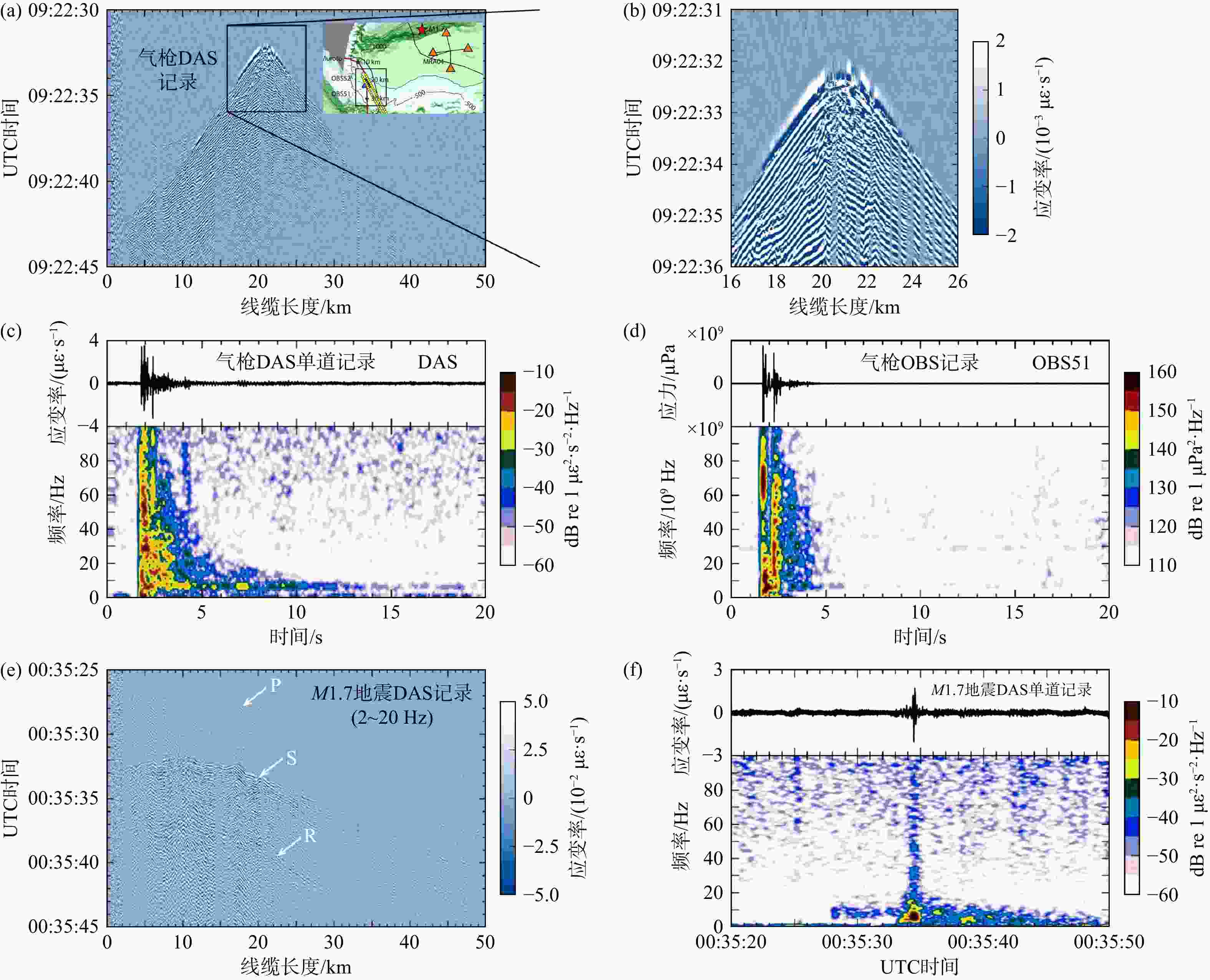

    图  6  日本四国岛Muroto光缆DAS实验. (a)50 km长光缆接收到的气枪信号(在光缆20.8km附近),其中小图显示地震(五角星)、OBS(三角)和光缆(红线)的相对位置;(b)气枪源附近DAS信号放大;(c)20.8 km处单道DAS气枪信号和频谱;(d)附近OBS接收的气枪信号和频谱;(e)DAS接收到的地震信号;(f)20.8 km处单道DAS地震信号和频谱(修改自Matsumoto et al., 2021

    Figure  6.  The DAS experiments on "Muroto cable" in Shikoku Island, Japan. (a) The airgun (near the location of cable length at 20.8 km) signals received by the 50 km fiber cable section. The inset shows the locations of earthquakes (star), OBS (triangle) and cable (red line); (b) The enlarged signals near the source; (c) Airgun signal and its time-frequency spectra of single DAS channel at 20.8 km; (d) Airgun signal recorded by nearby OBS and its time-frequency spectra; (e) Signals from M1.7 earthquake nearby received the 50 km fiber cable section; (f) Earthquake signal and time-frequency spectra of single DAS channel at 20.8 km (modified from Matsumoto et al., 2021)

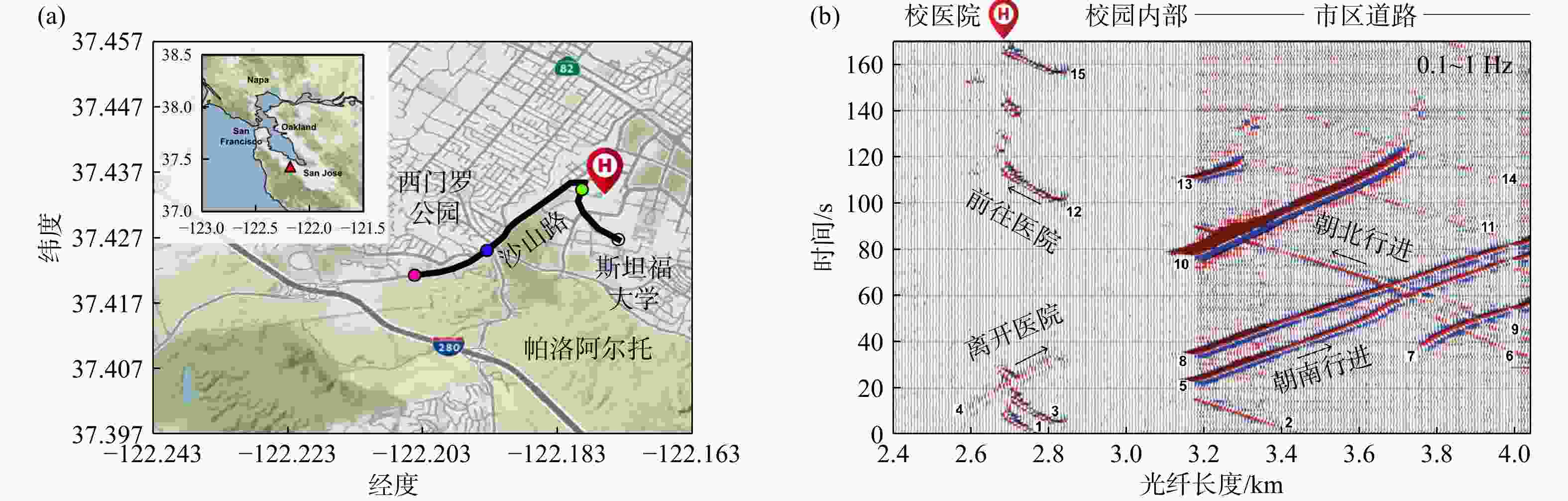

    图  7  斯坦福大学DAS-2实验. (a) DAS光纤路线(黑线)分布图;(b)DAS记录的交通轨迹. 波形被0.1~1 Hz带通滤波以便突出车辆经过时高质量的路基变形响应. 每辆车辆均被编号(修改自Lindsey et al., 2020b

    Figure  7.  Stanford DAS-2 experiment Array. (a) Map of optical fiber path used for DAS (black line); (b) Vehicle observations from Stanford DAS-2 experiment. Waveforms are bandpassed around 0.1~1 Hz to highlight the high-quality geodetic strain responses of the roadbed due to vehicle loading. Individual vehicles are numbered (modified from Lindsey et al., 2020b)

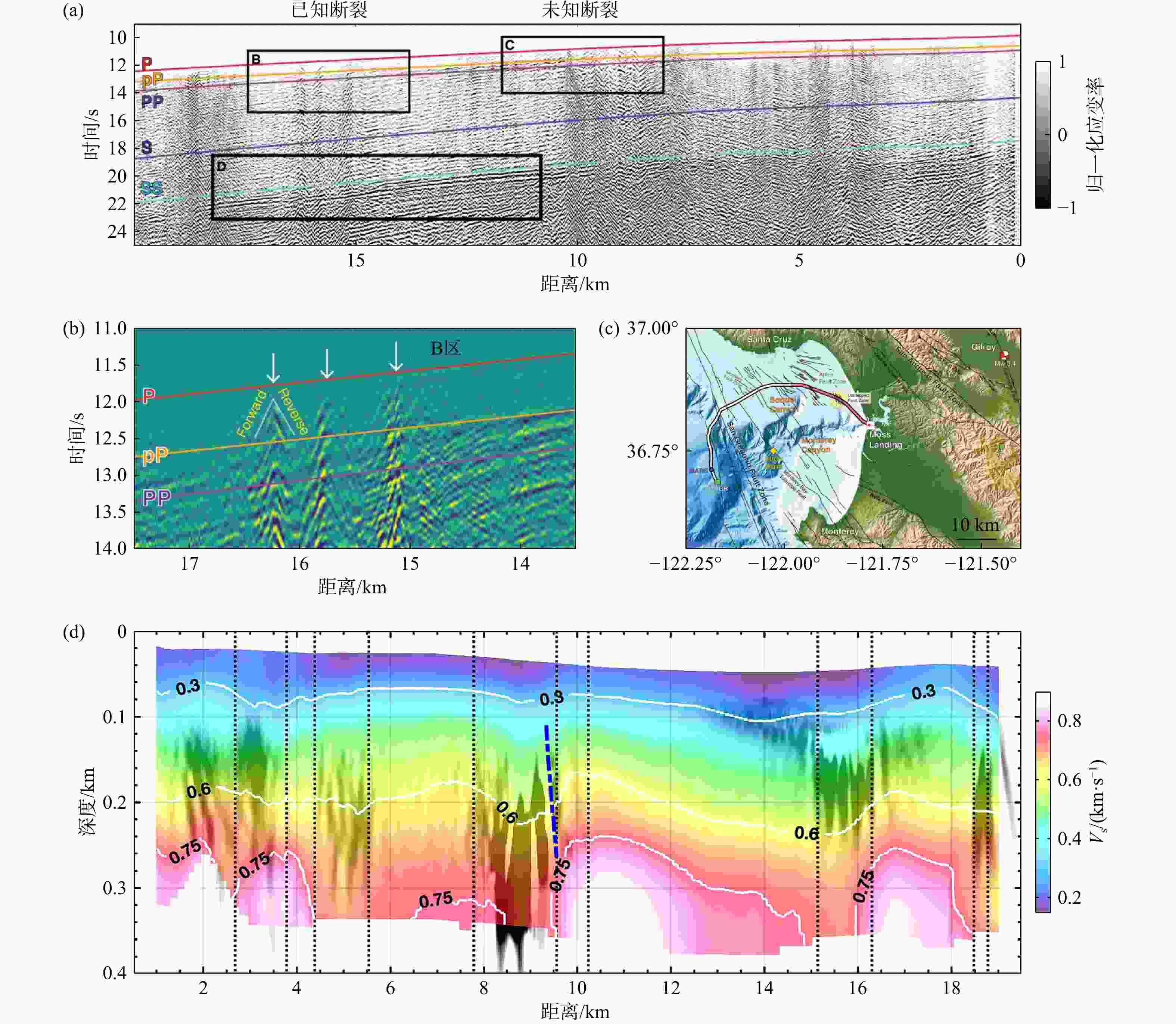

    图  8  美国加州Monterey湾区的MARS DAS实验. (a)MW3.4 Gilory地震的DAS波形记录和预测的地震震相到时(不同颜色线条). 海岸在距离为0处. (b)B区已知断裂波形的放大. (c)MARS光缆、已知断层和Gilroy地震分布图. DAS只有其中20 km光缆(粉色). (d)叠加VS反演和反向散射Scholte 波偏移的综合结果. 背景灰度图显示自然偏移结果;正面彩色图像为VS结果;蓝色虚线代表Kirchof 偏移结果. 黑色虚线表示从自相关图像观察到的水平不连续性. 注意此图海岸在左边[(a~c)修改自Lindsey et al., 2019;(d)修改自Cheng et al., 2021]

    Figure  8.  MARS DAS experiment in Monterey Bay, CA. (a) Full array observation (0 indicates the shore) with predicted seismic phase arrivals (colored lines). (b) Inset shows scattering with recently mapped submarine fault locations (white arrows). (c) The map shows MARS cable (DAS, pink portion), mapped faults, Gilroy earthquake. (d) Integrated results using VS inversion and backscattered Scholte wave migration. The gray background image shows the natural migration result; the front color image shows the VS inversion profile; the blue dashed line represents the Kirchhoff migration result. The black dashed lines indicate the observed horizontal discontinuity from the autocorrelation image. The shore is at the left side of the figlet [ (a~c) modified from Lindsey et al., 2019; (d) modified from Cheng et al., 2021]

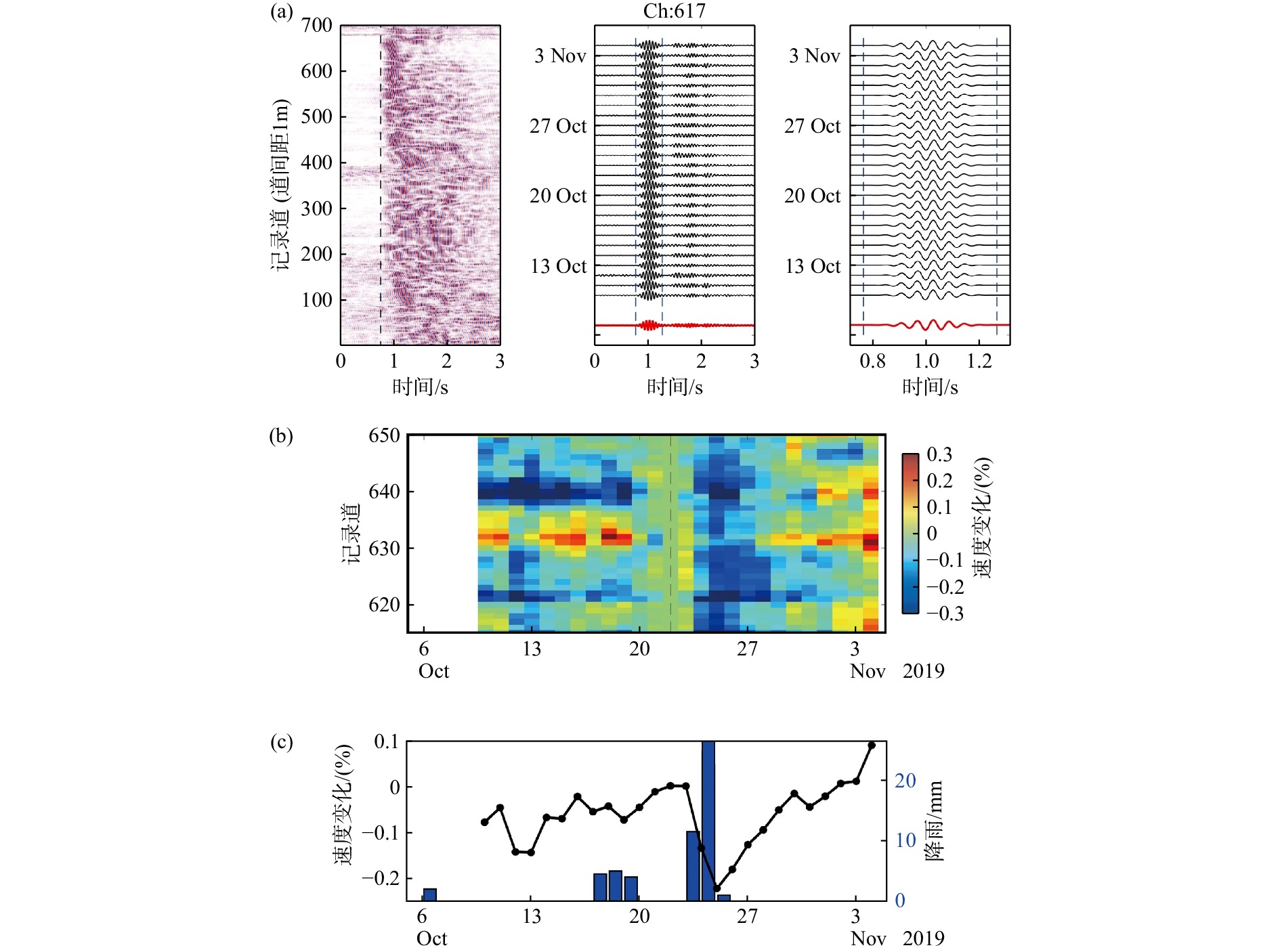

    图  9  DAS系统(离震源1.75 km)的监测结果. (a)由垂向震源得到的转换函数(左边)和617道的时间变化(中间和右边);(b)10月10日至11月4日615~650道的P波速度变化,以10月22日为零. (c)615~650道平均速度变化(黑色)和降雨量(蓝色). Oct:十月;Nov:十一月(修改自Tsuji et al., 2021

    Figure  9.  Monitoring results derived from the DAS system ~1.75 km from the source system. (a) Transfer functions at all receiver channels derived from vertical source motion (left) and temporal variation of channel 617 (middle and right). (b) Temporal variation of P-wave velocity for channels #615~#650 from 10 October to 4 November. The velocity change is defined by using the velocity on 22 October as zero. (c) The velocity change averaged from channel #615~#650 results (black), and the precipitation from rain events (blue) (modified from Tsuji et al., 2021)

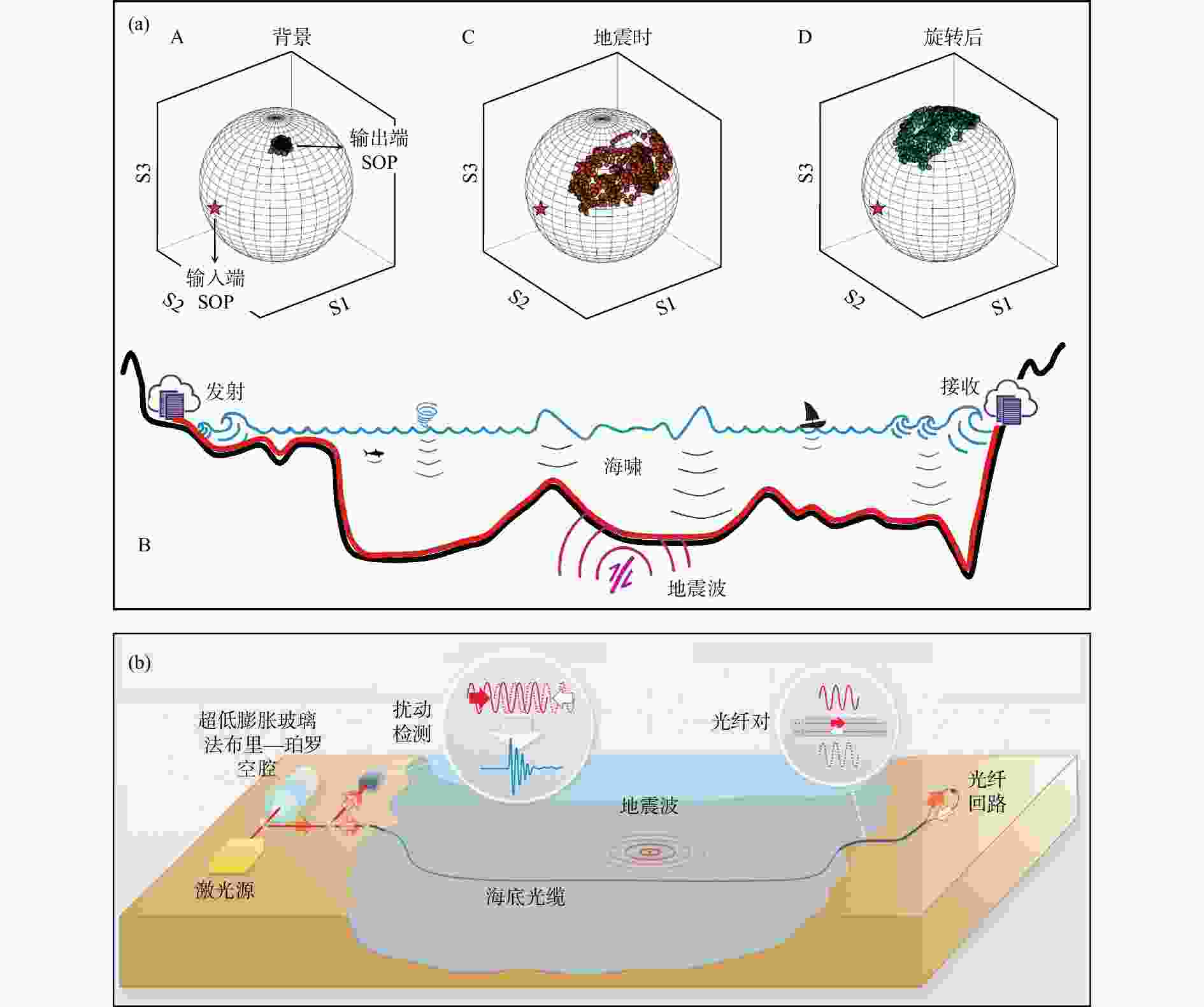

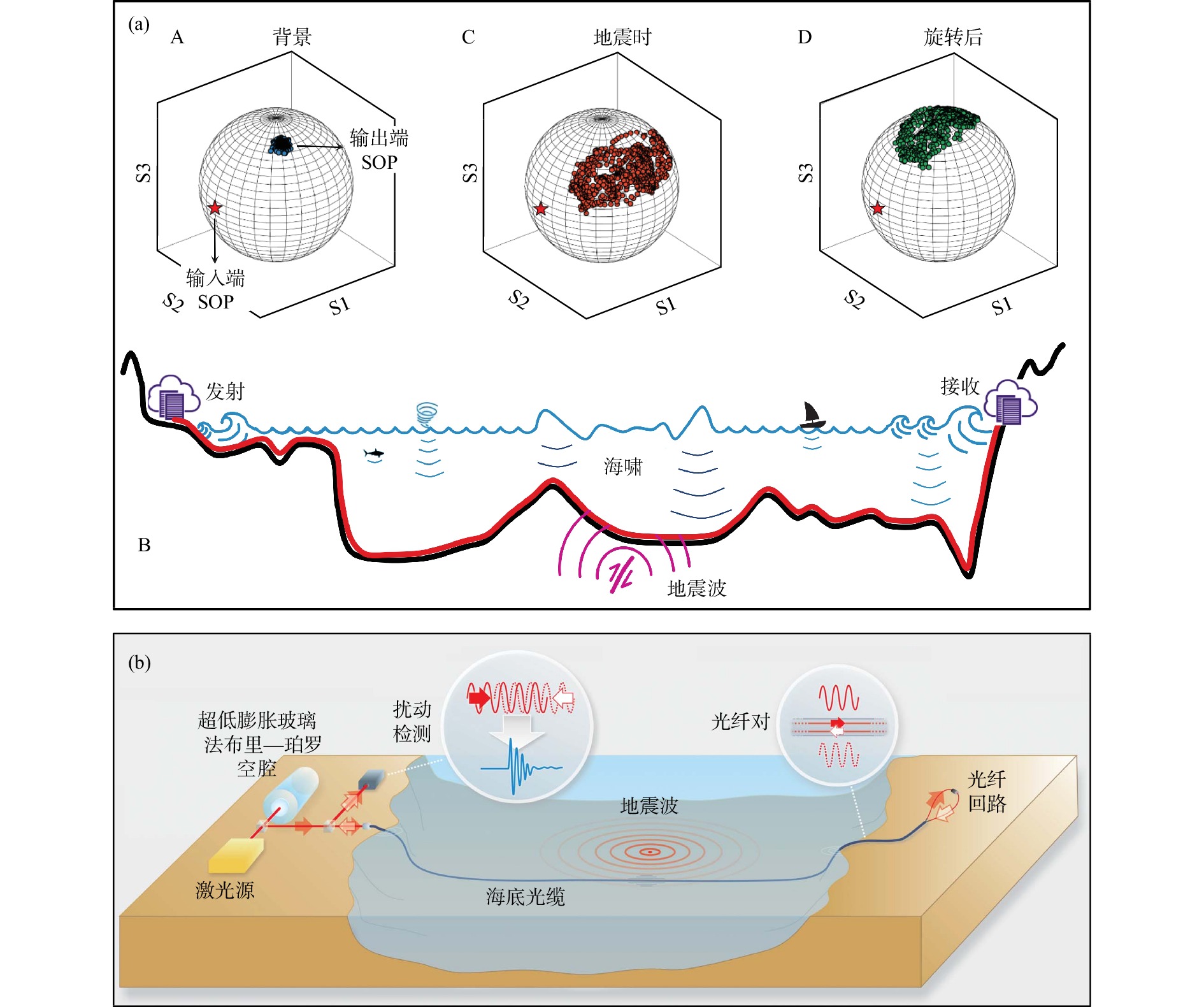

    图  10  光纤透射光的振动传感. (a)基于透射光偏振状态(SOP)的振动传感(修改自Zhan et al., 2021). 输入端的SOP是稳定的,接收端会一直监视SOP,正常情况下输入和输出SOP关系是稳定的(A). 但当光缆受到来自地震和海浪产生的振动和应力(B),输出端的SOP会出现异常(C),从中可以检测出地震或海浪. SOP通常被旋转到北极以便于分析. (b)基于透射光相位变化的振动传感(修改自Marra et al., 2018). 稳定的1 Hz激光被注入光纤,并通过回路从另外一根光纤中返回,进行干涉相位测量

    Figure  10.  Principles of fiber sensing of transmitted lights. (a) Polarization-based on transmitted light sensing (modified from Zhan et al., 2021). The state of polarization (SOP) at the receiver is monitored routinely while the input SOP stays stable. The output SOP is generally robust, owing to relatively minimal perturbations along most of its path in the deep ocean (A). The SOP anomalies (C) produce by shaking or pressuring the cable are used to detect earthquakes or ocean waves (B). The SOPs are rotated to the north pole for analyzing (D). (b) Phase-based of transmitted light sensing (modified from Marra et al., 2018). Stable lasers are injected into one fiber, and then returned to sender from another fiber for Interferometric phase measurement

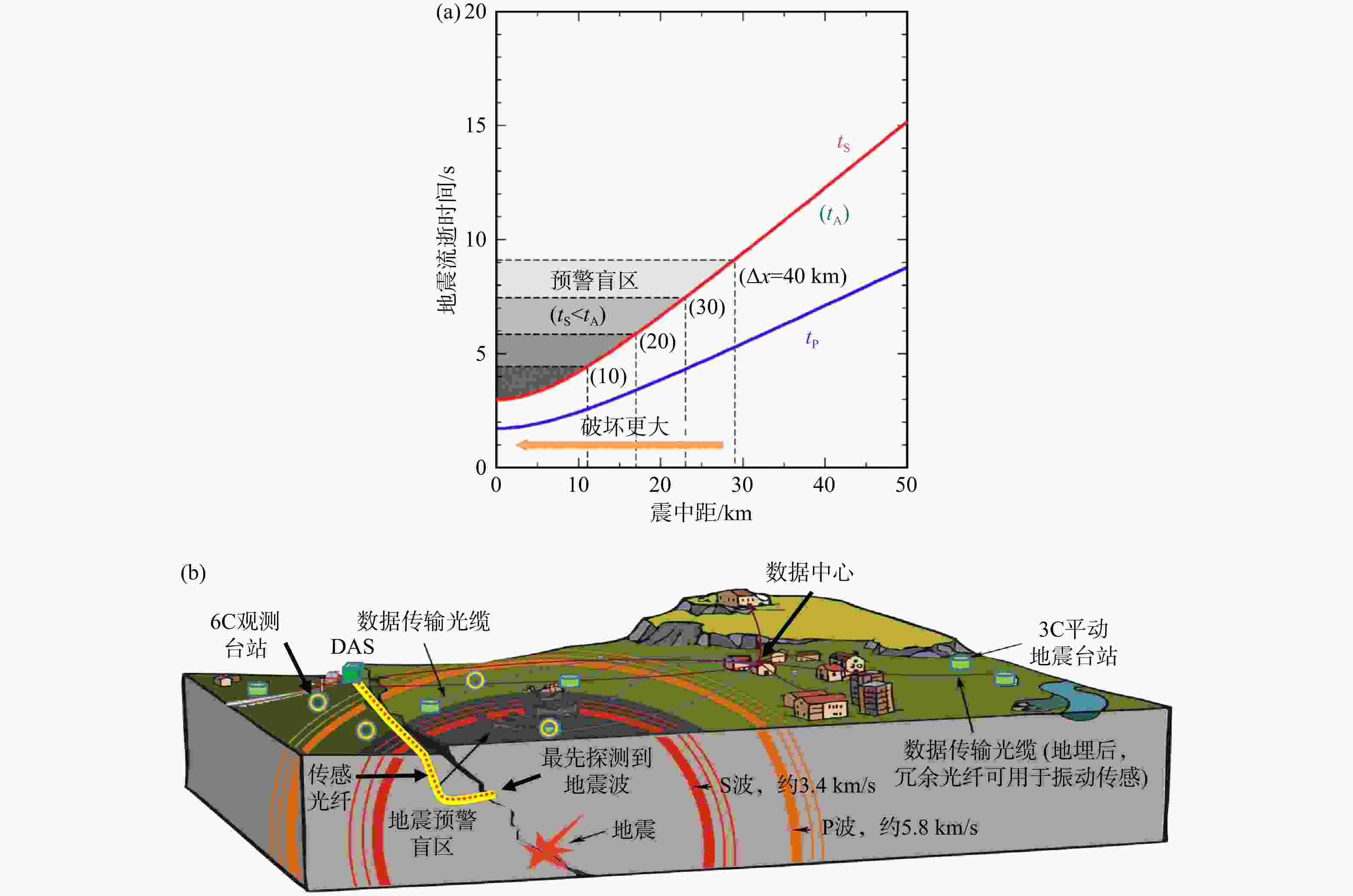

    图  11  (a)地震预警的时间进程、不同台间距强振动到达时间和预警盲区. 假设P波和S波速度分布为5.8 km/s和3.4 km/s,tP tS 分别是P波(蓝线)与S波(红线)的到达时间,tA是预警发出时间,介于tP tS 之间. 虚竖线表示台间距,不同灰色区对应预警盲区,它和台间距与系统处理时间有关. 离震中台站越远,发出预警所需时间越长;此外,预警盲区内的振动和破坏往往比外围区域更大(修改自Tajima and Hayashida, 2018). (b)由6C台站、DAS系统组成的断裂带光纤振动传感网络. 3C台站6C升级、沿断裂带铺设分布式传感光纤(黄线和红点)、数据传输光缆中冗余光纤转变为传感光纤,将对活断裂带形成密集监测网络(修改自http://www.seismo.ethz.ch/en/research-and-teaching/fields_of_research/earthquake-early-warning/)
