重复地震和地球内核的时变性

杨翼 宋晓东

引用本文: 杨翼,宋晓东. 重复地震和地球内核的时变性. 地球与行星物理论评,2021,52(1):1-10
Yang Y, Song X D. Repeating earthquakes and temporal changes of the Earth's inner core. Reviews of Geophysics and Planetary Physics, 2021, 52(1):1-10

重复地震和地球内核的时变性

doi: 10.19975/j.dqyxx.2020-010
基金项目: 国家自然科学地震联合基金资助项目(U1939204);博士后国际交流计划引进项目及北京大学博雅博士后项目
详细信息
    通讯作者:

    宋晓东(1964-),男,教授,主要从事地震学、地球内部结构与动力学、大陆岩石圈结构及地震灾害的研究. E-mail:xdsong@pku.edu.cn

  • 中图分类号: P313

Repeating earthquakes and temporal changes of the Earth's inner core

Funds: Supported by the Joint Earthquake Science Initiative of the National Natural Science Foundation of China (U1939204) and the International Postdoc Exchange Program and Peking University Boya Postdoc Program
  • 摘要: 地球内核是地球最中心的圈层,它的一个很重要的特性是在几年至十年的尺度上存在着明显的时变性. 利用重复地震经过内核的波随时间的变化给内核的时变性提供了最有力的且毫无争议的证据. 然而时变信号的来源仍有待商榷. 一般解释认为与内核的差速旋转有关;另一个解释为内核边界的快速变化. 最新的研究表明,内核的时变信号主要来源于内核的内部而非边界. 这一新发现排除了内核边界作为时变唯一信号来源的可能性. 最简单而合理的解释依然是内核的差速旋转:内核以每年0.05°~0.1°的速率相对于地幔超速旋转,并有变速旋转的可能性,使得内核浅部不均一的横向结构发生位移,重复地震的体波沿着固定路径传播时会采样到不同的内核结构而产生时变信号. 这一模型可以解释此前研究观测到的所有时变信号. 内核时变现象和其成因的探究对于我们认识地球深部的运行方式,尤其是磁场的运行机制,有着重要的启发意义.

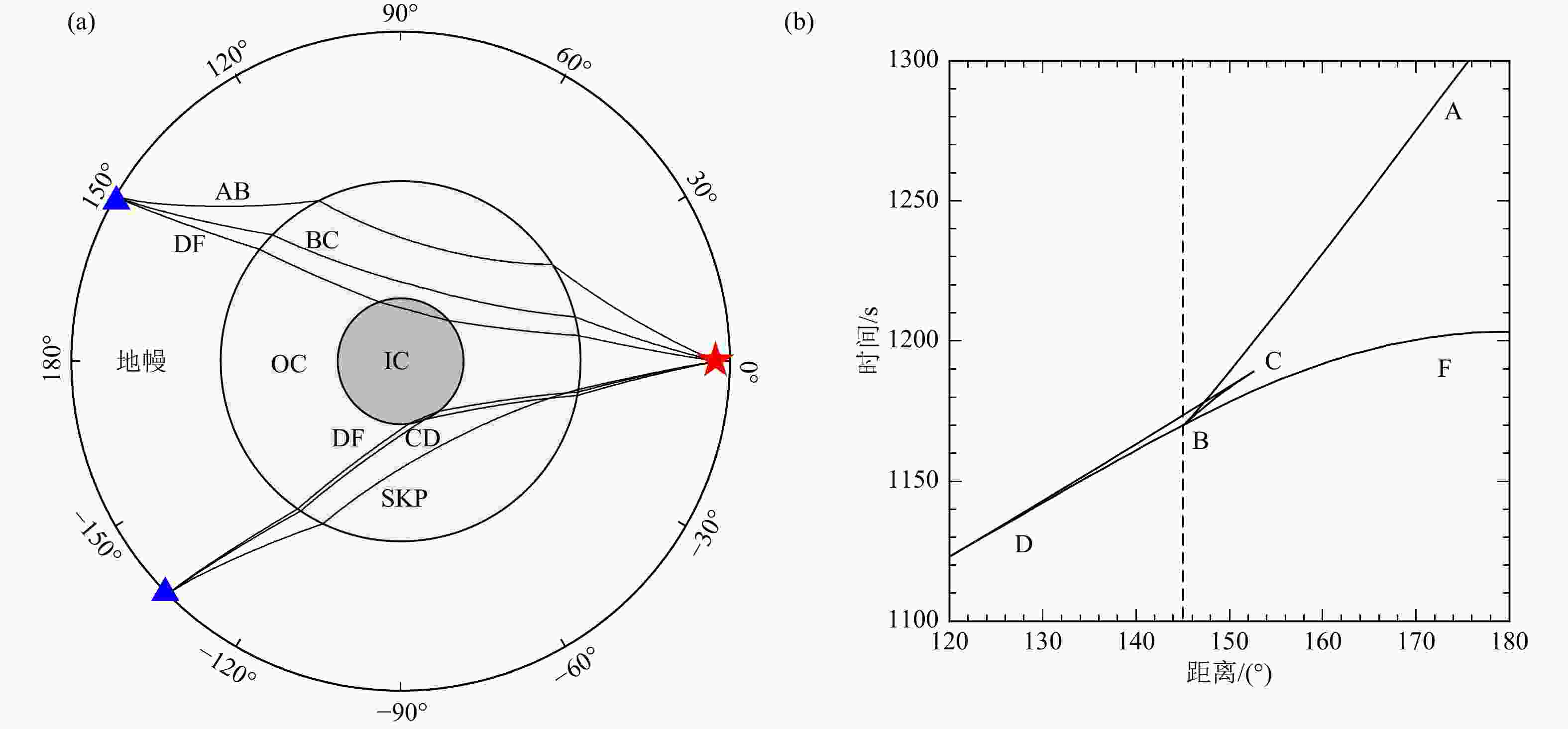

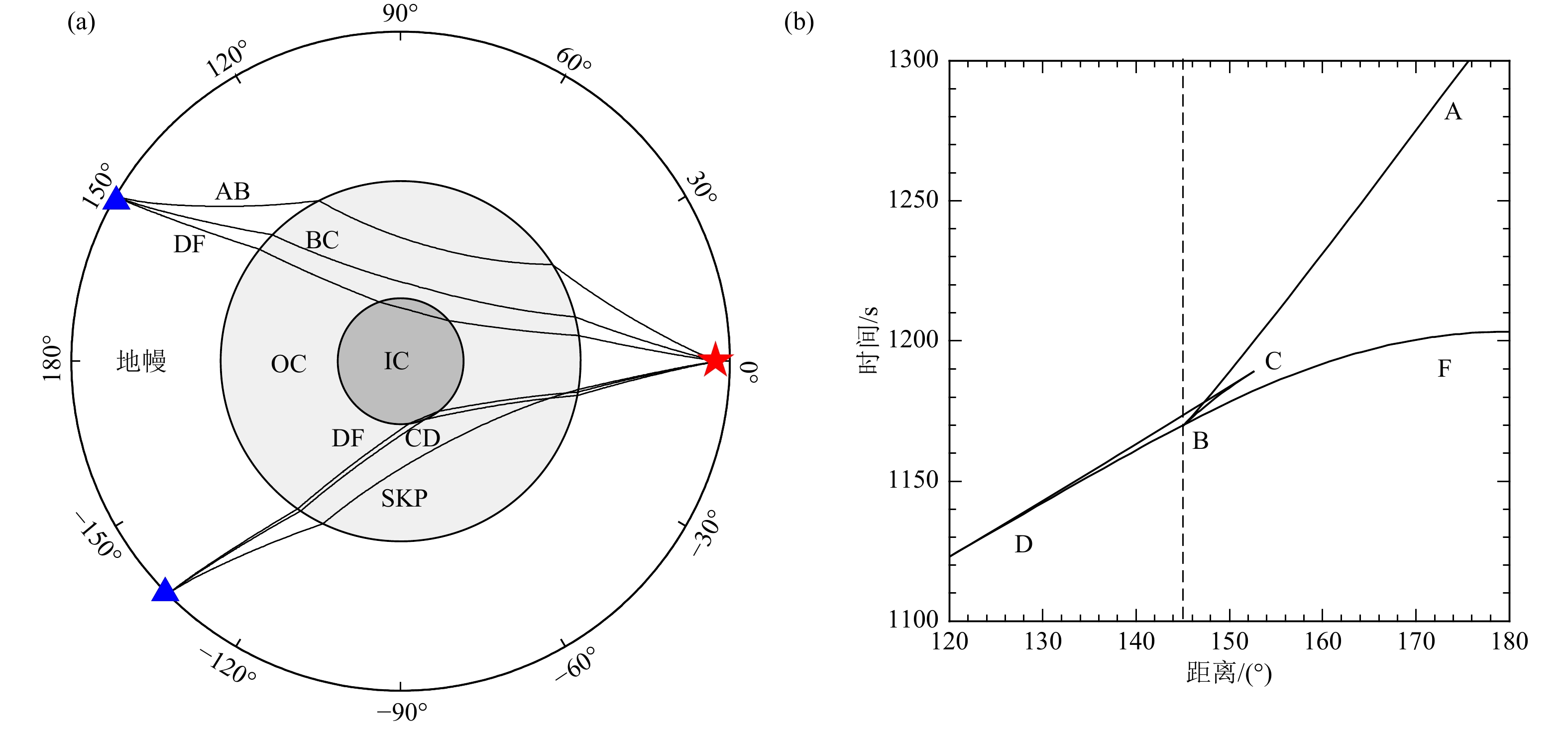

  • 图  1  穿透地核的地震波的射线路径和走时曲线. (a)震源(红色五角星)产生的信号分别被距离135°和150°的两个台站(蓝色三角形)接收(修改自Yang and Song, 2020b). 内核的PKP波穿透内核(标注为IC)的路径称为DF,在内核边界反射的称为CD,从外核(标注为OC)底部通过的路径称为BC,外核中部通过的路径称为AB. SKP是在震源产生的横波(S)经过核幔边界转化为纵波(外核K;回到地幔P)的震相. (b)PKP波的走时曲线(震源深度在50 km)

    Figure  1.  Raypaths and travel time curves of core phases. (a) Raypaths from an example event (red star) at 0° to two stations (blue triangles) at 135° and 150° (modified from Yang and Song, 2020b). PKP waves include DF branch sampling the inner core (labeled as IC), BC branch sampling the bottom of the outer core (labeled as OC), AB branch sampling the middle of the outer core, and CD branch reflected from the inner core boundary. SKP wave takes off as shear wave (S) and converted to compressional wave at the core-mantle boundary (K in the outer core and P back to the mantle). (b) PKP travel time curves (source depth at 50 km)

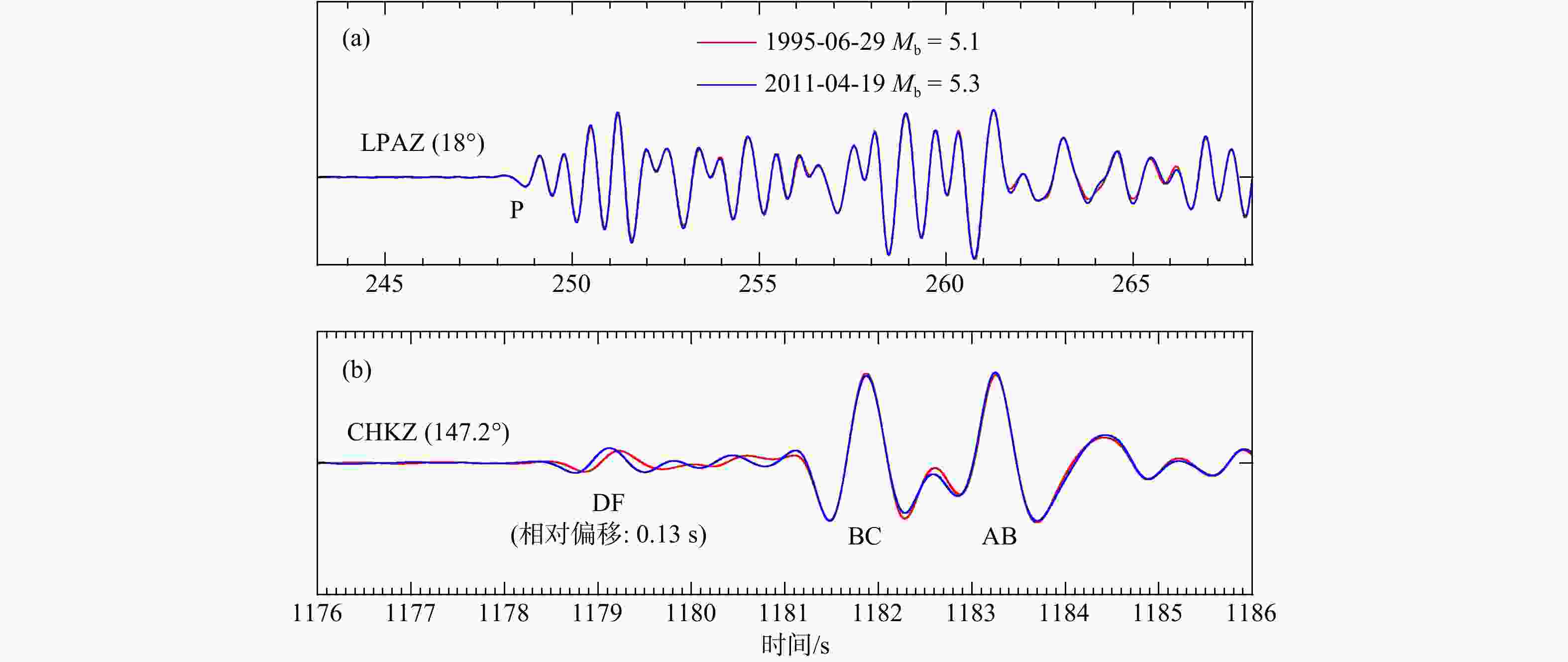

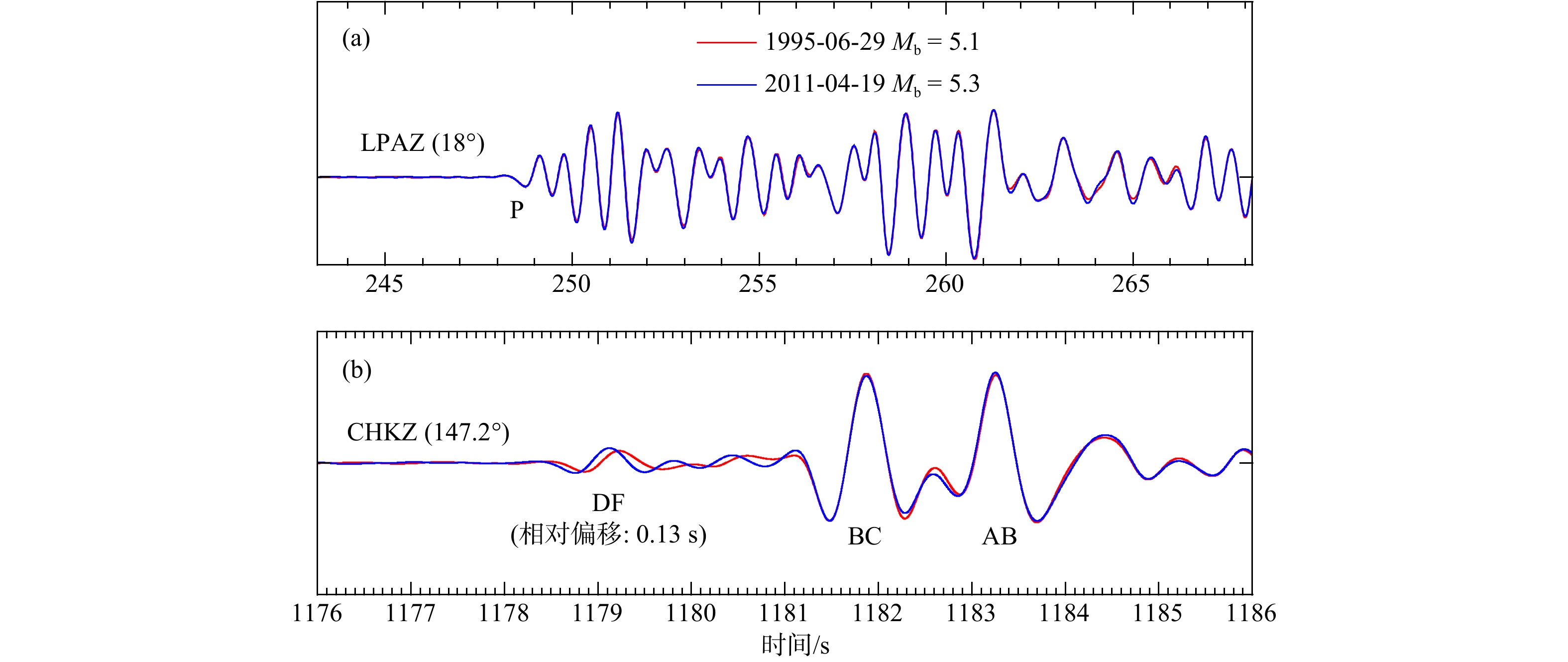

    图  2  重复地震的相似波形和其内核透射波DF时变现象的例子(修改自Yang and Song, 2020a). (a)显示1995年和2011年的一对重复地震的P波及后续波和尾波在LPAZ台站(震中距18°)的记录几乎一致,利用互相关对齐并振幅归一化之后近乎重叠. (b)类似于图(a),显示了PKP波在CHKZ台站的记录,可见外核的BC和AB震相几乎一样;而对于内核的DF震相,2011年的信号比1995年的早到了约0.13 s,并且波形也出现了变化

    Figure  2.  Example of highly similar waveforms and temporal changes of DF from repeating earthquakes (modified from Yang and Song, 2020a). (a) Nearly identical wavefroms from a pair of repeating earthquakes in 1995 and 2011 to station LPAZ (distance 18°). They are aligned with cross-correlation and normalized by their peak amplitudes. (b) Similar to (a), but time-varying DF waveforms recorded by station CHKZ. The outer-core phases BC and AB remain similar, but the inner-core phase DF in 2011 arrives 0.13 s earlier and shows different waveforms compared to that in 1995

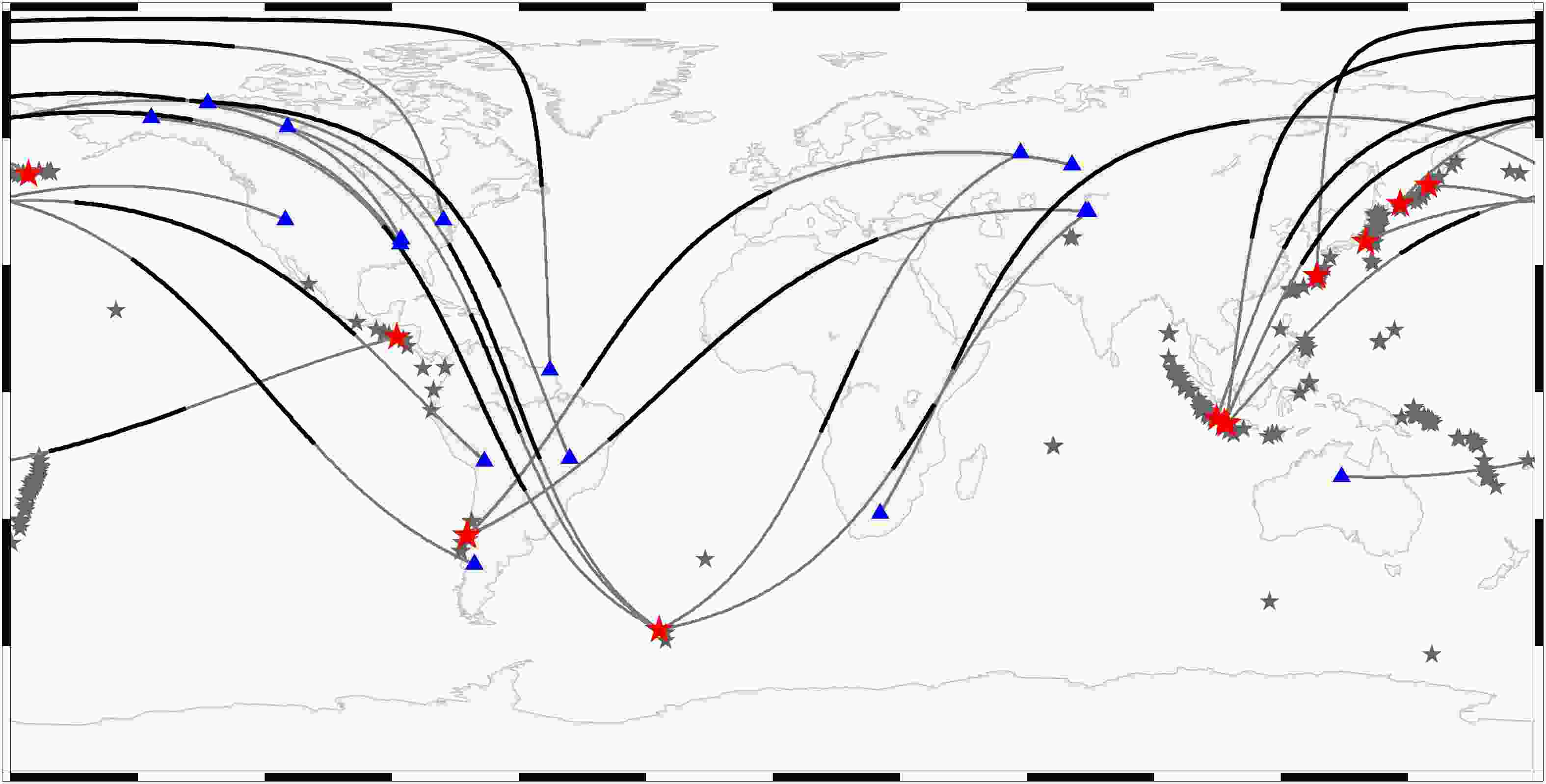

    图  3  中高强度重复地震分布和内核时变路径汇总图. 图中的曲线代表从重复地震(红色五角星)到地震台站、局域台网、或者区域台阵(蓝色三角形)并检测出内核时变信号的路径(Zhang et al., 2005; Wen, 2006; Cao et al., 2007; Song and Dai, 2008; Zhang et al., 2008; Yao et al., 2015, 2019; Yang and Song, 2020a, 2020b). 曲线中的黑色加粗段代表DF波在内核中的传播路径. 为了让此图更清晰易读,同一个地区的只选取了一个代表性的台站,包括阿拉斯加,哈萨克斯坦KZ台网,吉尔吉斯坦KN台网等. 灰色三角形代表Yang和Song(2020a)系统性地搜索出的全球的中高强度(震级5~6)的重复地震

    Figure  3.  Compilation of paths with temporal changes of the inner core from strong repeating earthuakes. The dark lines represent surface projections of raypaths from repeating earthquakes (red stars) to receivers (stations, arrays, and regional networks) reported by previous studies (Zhang et al., 2005; Wen,2006Cao et al., 2007; Song and Dai, 2008; Zhang et al., 2008; Yao et al., 2015, 2019; Yang and Song, 2020a, 2020b). The black bold parts of the lines indicate the wave legs traversing the inner core. In the same region (e.g., Alaska, KZ network in Kazakhstan, KN network in Kyrgyzstan), only one representative station is plotted out to avoid overcrowding. Gray stars denote all strong repeating earthquakes (magnitude 5~6) searched out by Yang and Song (2020a)

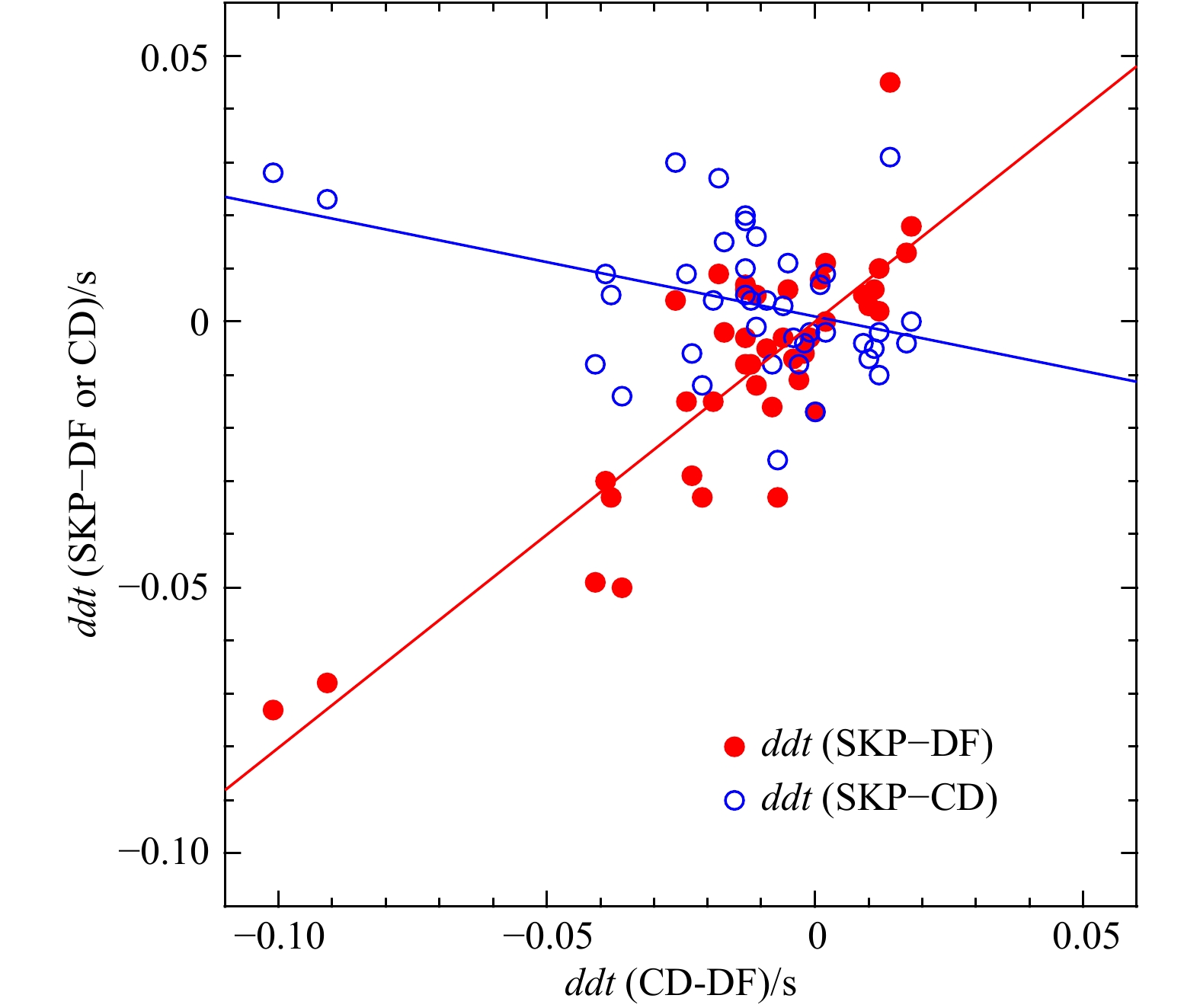

    图  4  内核时变信号来源的分析(修改自Yang and Song, 2020b). 图中数据来源于15组重复地震(12组全球分布的高质量重复地震和3组SSI地区的质量略差的重复地震). 图中ddt代表一对重复地震的两个震相的双差到时(Song and Dai, 2008),定义为ddt(AB)=dt(A)−dt(B)=[t(A2)−t(A1)]−[(t(B2)−t(B1)],其中下标1和2分别用来代指早发生和晚发生的重复地震. 横轴ddt(CD−DF)代表利用CD和DF互为参考来判断它们是否有时变信号(非零);纵轴ddt(SKP−DF or CD)代表利用SKP做参考震相,分别显示CD和DF的时变大小;图上的红线和蓝线分别代表它们与ddt(CD−DF)的线性拟合,斜率分别为0.796±0.081和−0.204±0.081. 倘若只使用12组高质量重复地震的数据,则斜率分别为0.861±0.114和−0.139±0.114

    Figure  4.  Analyses of the origin of time-varying inner-core waves (modified from Yang and Song, 2020b). The data points are from 15 pairs of repeating earthquakes (12 high-quality global pairs and 3 slightly inferior SSI pairs). The ddt represents the double differential time between two phases (A and B) from a pair of repeating earthquakes (Song and Dai, 2008), and is formulated as ddt(AB)=dt(A)−dt(B)=[t(A2)−t(A1)]− [t(B2)−t(B1)], where the subscirpts 1 and 2 denote the earlier and later event, respectively. The horizontal axis, ddt(CD-DF), represent the inner-core temporal changes, using CD and DF phases. The vertical axis, ddt(SKP-DF or CD) indicates the changes of DF or CD, using SKP phase as reference, and the red and blue lines are their linear regressions with ddt(CD-DF), with slopes of 0.796±0.081 and −0.204±0.081, respectively. If using 12 high-quality pairs only, the corresponding slopes would be 0.861±0.114 and −0.139±0.114, respectively

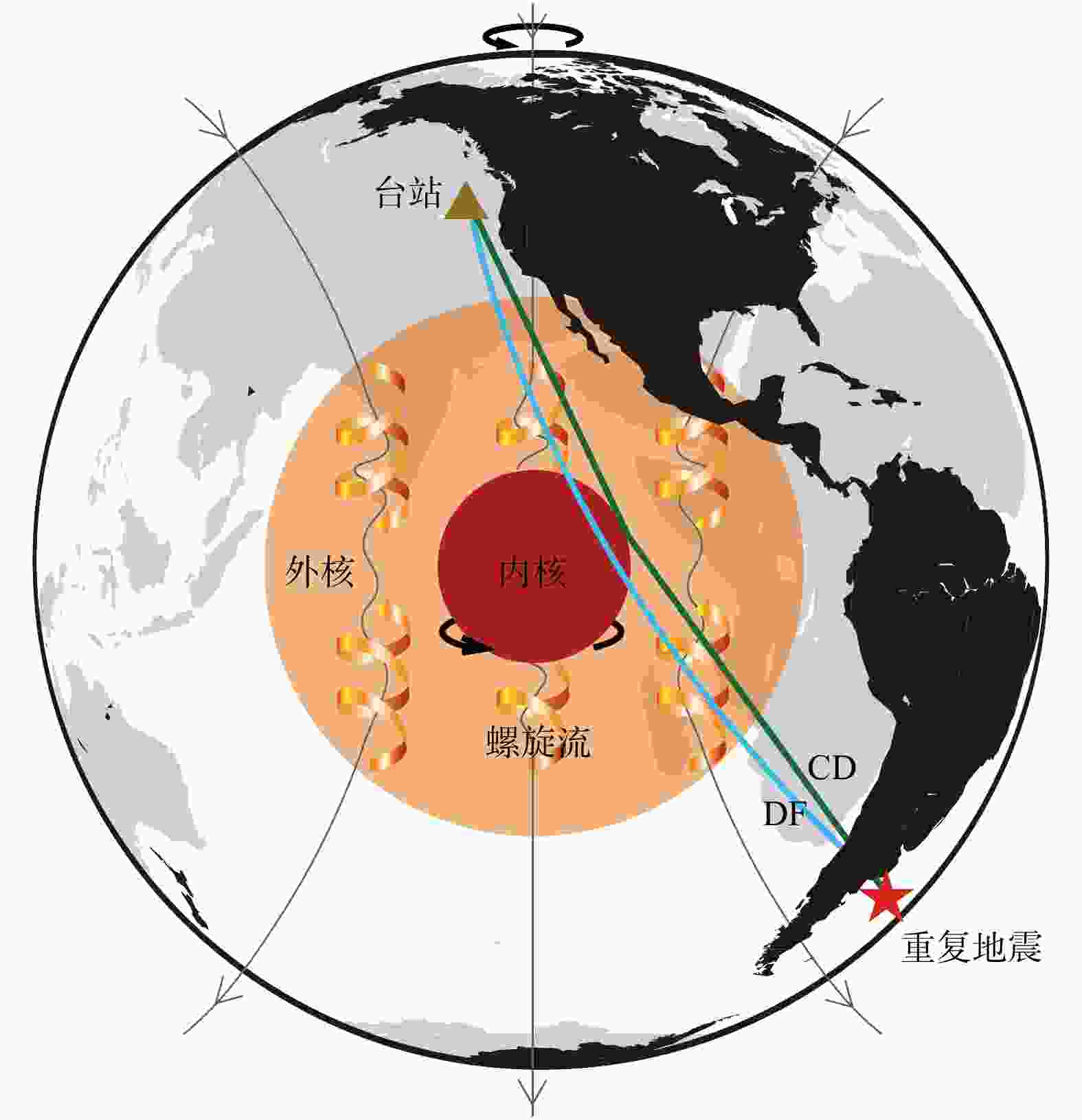

    图  5  内核时变信号来源的示意图. 外核液态铁镍合金的对流受到地球自转影响产生螺旋状环形流动(金色螺旋线),产生地磁场(灰色细线和箭头的磁力线). 磁场与内核的地磁力矩驱动内核的差速旋转(旋转箭头). 由于内核介质的不均一性,台站(褐色三角形)接收到的重复地震(红色五角星)发出的穿透内核的体波(DF,蓝线)会显示出可观测到的时变性;相较而言,在内核边界反射的体波(CD,绿线)的时变性并不显著(Yang and Song, 2020b

    Figure  5.  Cartoon illustration of the origin of time-varying inner-core waves. The circulations of the outer core currents are twisted by the earth’s rotation to form helical flows (golden bands), which generate magnetic field (gray lines). Electromagenetic torque drives the differential rotation of the inner core, and hence shifts the position of the heteregenieties inside of the inner core. Temporal changes of seismic waves traversing the inner core (DF, blue line) are clearly observed from repeating earthquakes (red star) to seismic station (brown triangle). In contrast, temporal changes of seismic waves reflecting off the ICB (CD, green line) are not significant (Yang and Song, 2020b).

  • [1] Cao A, Masson Y, Romanowicz B. Short wavelength topography on the inner-core boundary[J]. Proceedings of the National Academy of Sciences, 2007, 104(1): 31-35, https://doi.org/10.1073/pnas.0609810104.
    [2] Creager K C. Inner core rotation rate from small-scale heterogeneity and time-varying travel times[J]. Science, 1997, 278(5341): 1284-1288. doi: 10.1126/science.278.5341.1284
    [3] Deuss A. Heterogeneity and anisotropy of Earth's inner core[J]. Annual Review of Earth and Planetary Sciences, 2014, 42: 103-126. doi: 10.1146/annurev-earth-060313-054658
    [4] Ding H, Chao B F. A 6-year westward rotary motion in the Earth: Detection and possible MICG coupling mechanism[J]. Earth and Planetary Science Letters, 2018, 495: 50-55. doi: 10.1016/j.jpgl.2018.05.009
    [5] Frost D A, Romanowicz B, Roecker S. Upper mantle slab under Alaska: contribution to anomalous core-phase observations on south-Sandwich to Alaska paths[J]. Physics of the Earth and Planetary Interiors, 2020, 299: 106427. doi: 10.1016/j.pepi.2020.106427
    [6] Glatzmaier G A, Roberts P H. A three-dimensional convective dynamo solution with rotating and finitely conducting inner core and mantle[J]. Physics of the Earth and Planetary Interiors, 1995a, 91(1-3): 63-75. doi: 10.1016/0031-9201(95)03049-3
    [7] Glatzmaiers G A, Roberts P H. A three-dimensional self-consistent computer simulation of a geomagnetic field reversal[J]. Nature, 1995b, 377(6546): 203-209. doi: 10.1038/377203a0
    [8] Gubbins D. Rotation of the inner core[J]. Journal of Geophysical Research, 1981, 86(B12): 11695-11699. doi: 10.1029/JB086iB12p11695
    [9] Kuang W, Bloxham J. An Earth-like numerical dynamo model[J]. Nature, 1997, 389(6649): 371-374. doi: 10.1038/38712
    [10] Laske G, Masters G. Limits on differential rotation of the inner core from an analysis of the Earth's free oscillations[J]. Nature, 1999, 402(6757): 66-69. doi: 10.1038/47011
    [11] Laske G, Masters G. The Earth's free oscillations and the differential rotation of the inner core[C]// Dehant V, Creager K C, Karato S, Zatman S. (Eds.). Earth's Core; Dynamics, Structure, Rotation, AGU Dynamics Series 31 (Chap. 1, pp. 5-21). Washington, DC: American Geophysical Union, 2003, https://doi.org/10.1029/GD031p0005.
    [12] Leyton F, Koper K D. Using PKiKP coda to determine inner core structure: 1. Synthesis of coda envelopes using single-scattering theories[J]. Journal of Geophysical Research: Solid Earth, 2007, 112(5): 1-19. doi: 10.1029/2006JB004369
    [13] Li L, Chen Q F, Niu F, Su J. Deep slip rates along the Longmen Shan fault zone estimated from repeating microearthquakes[J]. Journal of Geophysical Research: Solid Earth, 2011, 116(B9): B09310. doi: 10.1029/2011JB008406
    [14] Lindner D, Song X, Ma P, Christensen D H. Inner core rotation and its variability from nonparametric modeling[J]. Journal of Geophysical Research, 2010, 115: B04307. doi: 10.1029/2009JB006294
    [15] Mäkinen A M, Deuss A. Global seismic body-wave observations of temporal variations in the Earth’s inner core, and implications for its differential rotation[J]. Geophysical Journal International, 2011, 187(1): 355-370. doi: 10.1111/j.1365-246X.2011.05146.x
    [16] Niu F, Silver P G, Nadeau R M, McEvilly T V. Migration of seismic scatterers associated with the 1993 Parkfield aseismic transient event[J]. Nature, 2003, 426(6966): 544-548. doi: 10.1038/nature02151
    [17] Ovchinnikov V M, Adushkin V V, An V A. The relative rotational velocity of the Earth's inner core[J]. Doklady Earth Sciences, 1998, 363(8): 1117-1119.
    [18] Peng Z, Koper K D, Vidale J E, et al. Inner-core fine-scale structure from scattered waves recorded by LASA[J]. Journal of Geophysical Research: Solid Earth, 2008, 113(9): 1-11. doi: 10.1029/2007JB005412
    [19] Poupinet G, Ellsworth W L, Frechet J. Monitoring velocity variations in the crust using earthquake doublets: An application to the Calaveras Fault, California[J]. Journal of Geophysical Research: Solid Earth, 1984, 89(B7): 5719-5731. doi: 10.1029/JB089iB07p05719
    [20] Poupinet G, Souriau A, Coutant O. The existence of an inner core super-rotation questioned by teleseismic doublets[J]. Physics of the Earth and Planetary Interiors, 2000, 118(1-2): 77-88. doi: 10.1016/S0031-9201(99)00129-6
    [21] Schaff D P, Richards P G. Repeating seismic events in China[J]. Science, 2004, 303(5661): 1176-1178. doi: 10.1126/science.1093422
    [22] Song X. Anisotropy of the Earth's inner core[J]. Reviews of geophysics, 1997, 35(3): 297-313. doi: 10.1029/97RG01285
    [23] Song X. Joint inversion for inner core rotation, inner core anisotropy, and mantle heterogeneity[J]. Journal of Geophysical Research: Solid Earth, 2000a, 105(B4): 7931-7943. doi: 10.1029/1999jb900436
    [24] Song X. Time dependence of PKP (BC)–PKP (DF) times: could this be an artifact of systematic earthquake mislocations?[J]. Physics of the Earth and Planetary Interiors, 2000b, 122(3-4): 221-228. doi: 10.1016/S0031-9201(00)00195-3
    [25] Song X. Comment on “The existence of an inner core super-rotation questioned by teleseismic doublets” by Georges Poupinet, Annie Souriau, and Olivier Coutant[J]. Physics of the Earth and Planetary Interiors, 2001, 124(3-4): 269-273. doi: 10.1016/S0031-9201(01)00182-0
    [26] Song X. Three-dimensional structure and differential rotation of the inner core[C]// Dehant V, Creager K C, Karato S, Zatman S (Eds.). Earth’s Core: Dynamics, Structure, Rotation, Geodynamics Series (Vol. 31, pp. 45-63). Washington, DC: American Geophysical Union, 2003, https://doi.org/10.1029/GD031p0045.
    [27] Song X, Dai W. Topography of Earth’s inner core boundary from high-quality waveform doublets[J]. Geophysical Journal International, 2008, 175(1): 386-399. doi: 10.1111/j.1365-246X.2008.03909.x
    [28] Song X, Li A. Support for differential inner core superrotation from earthquakes in Alaska recorded at South Pole station[J]. Journal of Geophysical Research: Solid Earth, 2000, 105(B1): 623-630. doi: 10.1029/1999JB900341
    [29] Song X, Richards P G. Seismological evidence for differential rotation of the Earth’s inner core[J]. Nature, 1996, 382(6588): 221-224. doi: 10.1038/382221a0
    [30] Souriau A, Roudil P, Moynot B. Inner core differential rotation: Facts and artefacts[J]. Geophysical Research Letters, 1997, 24(16): 2103-2106. doi: 10.1029/97GL01933
    [31] Sun X, Poupinet G, Song X. Examination of systematic mislocation of South Sandwich Islands earthquakes using station pairs: Implications for inner core rotation[J]. Journal of Geophysical Research: Solid Earth, 2006, 111: B11305. doi: 10.1029/2005JB004175
    [32] Tkalčić H. Complex inner core of the Earth: The last frontier of global seismology[J]. Reviews of Geophysics, 2015, 53(1): 59-94. doi: 10.1002/2014RG000469
    [33] Tkalčić H, Young M, Bodin T, et al. The shuffling rotation of the Earth's inner core revealed by earthquake doublets[J]. Nature Geoscience, 2013, 6(6): 497-502. doi: 10.1038/ngeo1813
    [34] Tromp J. Inner-core anisotropy and rotation[J]. Annual Review of Earth and Planetary Sciences, 2001, 29(1): 47-69. doi: 10.1146/annurev.earth.29.1.47
    [35] Uchida N, Bürgmann R. Repeating earthquakes[J]. Annual Review of Earth and Planetary Sciences, 2019, 47: 305-332. doi: 10.1146/annurev-earth-053018-060119
    [36] Uchida N, Matsuzawa T, Ellsworth W L, et al. Source parameters of microearthquakes on an interplate asperity off Kamaishi, NE Japan over two earthquake cycles[J]. Geophysical Journal International, 2012, 189(2): 999-1014. doi: 10.1111/j.1365-246X.2012.05377.x
    [37] Vidale J E. Very Slow Rotation of Earth's Inner Core From 1971 to 1974[J]. Geophysical Research Letters, 2019, 46(16): 9483-9488. doi: 10.1029/2019GL083774
    [38] Vidale J E, Dodge D A, Earle P S. Slow differential rotation of the Earth's inner core indicated by temporal changes in scattering[J]. Nature, 2000, 405(6785): 445-448. doi: 10.1038/35013039
    [39] Vidale J E, Earle P S. Fine-scale heterogeneity in the Earth's inner core[J]. Nature, 2000, 404(6775): 273-275. doi: 10.1038/35005059
    [40] Waszek L, Irving J, Deuss A. Reconciling the hemispherical structure of Earth's inner core with its super-rotation[J]. Nature Geoscience, 2011, 4(4): 264-267. doi: 10.1038/ngeo1083
    [41] Wen L. Localized temporal change of the Earth's inner core boundary[J]. Science, 2006, 314(5801): 967-970. doi: 10.1126/science.1131692
    [42] Wu W, Irving J C E. Using PKiKP coda to study heterogeneity in the top layer of the inner core's western hemisphere[J]. Geophysical Journal International, 2017, 209(2): 672-687. doi: 10.1093/gji/ggx047
    [43] Xin D, Song X, Wang T. Localized temporal variation of Earth's inner-core boundary from high-quality waveform doublets[J]. Earthquake Science, 2015, 28(3): 175-185. doi: 10.1007/s11589-015-0125-0
    [44] Xu X, Song X. Evidence for inner core super-rotation from time-dependent differential PKP traveltimes observed at Beijing Seismic Network[J]. Geophysical Journal International, 2003, 152(3): 509-514. doi: 10.1046/j.1365-246X.2003.01852.x
    [45] Yang Y, Song X. Temporal changes of the inner core from globally distributed repeating earthquakes[J]. Journal of Geophysical Research: Solid Earth, 2020a, 125(3): e2019JB018652. doi: 10.1029/2019JB018652
    [46] Yang Y, Song X. Origin of temporal changes of inner-core seismic waves[J]. Earth and Planetary Science Letters, 2020b, 541: 116267. doi: 10.1016/j.jpgl.2020.116267
    [47] Yang Y, Song X. Reply to Yao et al.'s comment on “Origin of temporal changes of inner-core seismic waves”[J].Earth and Planetary Science Letters, 2020c (in review).
    [48] Yao J, Sun L, Wen L. Two decades of temporal change of Earth’s inner core boundary[J]. Journal of Geophysical Research: Solid Earth, 2015, 120(9): 6263-6283. doi: 10.1002/2015JB012339
    [49] Yao J, Tian D, Sun L, Wen L. Temporal Change of Seismic Earth's Inner Core Phases: Inner Core Differential Rotation or Temporal Change of Inner Core Surface?[J]. Journal of Geophysical Research: Solid Earth, 2019, 124(7): 6720-6736. doi: 10.1029/2019JB017532
    [50] Yao J, Tian D, Sun L, Wen L.Comment on "Origin of temporal changes of inner-core seismic waves" by Yang and Song (2020)[J]. Earth and Planetary Science Letters, 2020 (in review).
    [51] Yu W. Time-dependent inner core structures examined using repeating earthquakes in subduction zones of the southwest Pacific[J]. Geophysical Journal International, 2016a, 204(2): 1204-1215. doi: 10.1093/gji/ggv508
    [52] Yu W. Detectability of temporal changes in fine structures near the inner core boundary beneath the eastern hemisphere[J]. Geophysical Research Letters, 2016b, 43(13): 6924-6931. doi: 10.1002/2016GL069664
    [53] Zhang J, Richards P G, Schaff D P. Wide-scale detection of earthquake waveform doublets and further evidence for inner core super-rotation[J]. Geophysical Journal International, 2008, 174(3): 993-1006. doi: 10.1111/j.1365-246X.2008.03856.x
    [54] Zhang J, Song X, Li Y, Richards P G. Inner core differential motion confirmed by earthquake waveform doublets[J]. Science, 2005, 309(5739): 1357-1360. doi: 10.1126/science.1113193
